PCD Wheel Hub Turning Tools

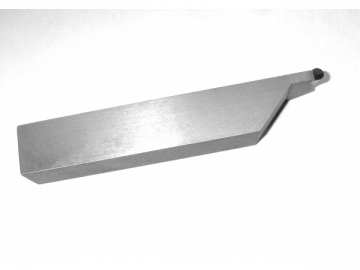

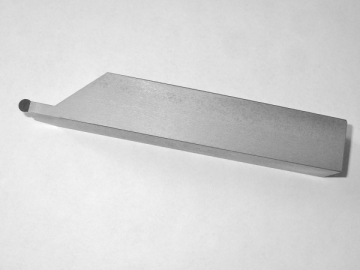

PCD Wheel Hub Turning Tool
Features
1. The service life of the PCD wheelhub turning tool is longer than that of an tungsten carbide cutting tool.
2. Our PCD wheel hub turning tool has a unique positioning table which can be used to change blades. The speed of changing blades can be improvedand the blades can be positioned in the accurate place to guarantee theprocessing precision.
3. Our PCD wheel hub turningtool can be equipped with a cutter arbor of different brands.
4. We can manufacture welding the PCD wheel hub turning tool of variousspecifications according the need of customers.
Application

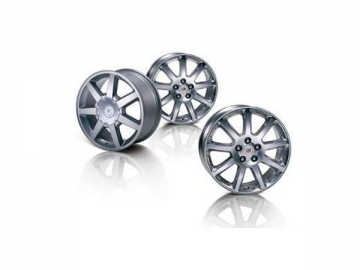

The PCD wheel hub turning tool is used for the external facing processing of aluminum alloywheel hubs for cars.
Technical Specifications
Specification of PCD Insert for Wheel Hub
| Model | Dimension (mm) | ||||
| L | C | s | d | R | |
| VCMW160408 | 16.6 | 9.525 | 4.76 | Φ4 | 0.8 |
| VCMW160410 | 16.6 | 9.525 | 4.76 | Φ4 | 1.0 |
| VCMW160411 | 16.6 | 9.525 | 4.76 | Φ4 | 1.1 |
| VCMW160412 | 16.6 | 9.525 | 4.76 | Φ4 | 1.2 |

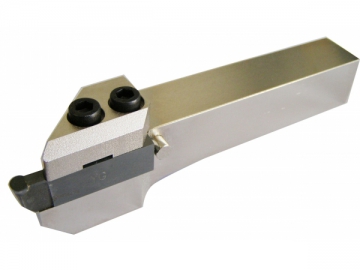

Specification of Tool Holder for Wheel Hub
| R | H | W | L |
| 2 | 13.4 | 4.8 | 46.5 |
| 2.5 | 17 | 5.5 | 65 |
| 3 | 17 | 5.5 | 65 |
| 4 | 17 | 5.5 | 65 |
| 2 | 25 | 25 | 150 |
| 2.5 | 25 | 25 | 150 |
| 3 | 25 | 25 | 170 |
| 4 | 25 | 25 | 170 |
Material
The tool bit of the PCD wheel hub turning tools uses PCBN or PCD blanksmanufactured by world famous companies including Element Six (DeBeers, E6), DI (GE),ILJIN, SMITH, SUMITOMO and TOMEI. Thecutter arbor uses high quality tungsten carbide and tool steel.
World is a PCD wheel hub turning tool manufacturer and supplier, based in
