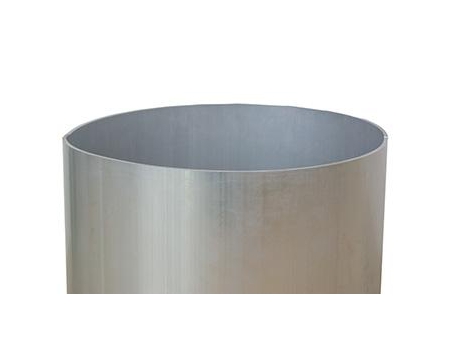

Aluminum Round Tube
JMA manufactures aluminum round tubes with maximum diameter of 500mm. Our aluminum pipes are normally made of 6063, 6061, 6005 and 6082 aluminum alloys, and users can carry out secondary operations on the aluminum round tubes, such as cutting, stamping, bending, drilling, and more.
The following are some of our previously made aluminum round tubes for customers to choose from. We also invite customers to contact us about any specific requirements they may have regarding alloy grades, dimensions, thickness or other parameters, and we are confident that JMA is able to provide the best products for you, thanks to our more than 20 years of experience in aluminum alloy profile manufacturing.

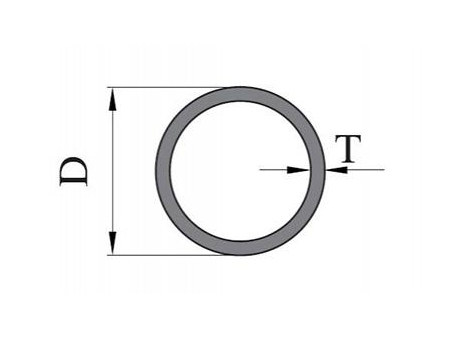

| Serial No. | D (mm) | T (mm) | (kg/m) |
| FZ0011 | 8 | 1.0 | 0.065 |
| JMB139 | 10 | 1.0 | 0.083 |
| JMB054 | 12 | 1.0/1.2 | 0.102/0.119 |
| JMB012 | 12.7 | 1.0 | 0.056 |
| JMB158 | 13 | 1.3 | 0.139 |
| JMB121 | 14 | 1.5 | 0.173 |
| JMB091 | 14.3 | 1.9 | 0.217 |
| JMB034 | 15 | 1.4 | 0.175 |
| JMB075 | 15.88 | 1.2 | 0.162 |
| JMB064 | 16 | 1.6/3.0 | 0.213/0.359 |
| JMB046A | 16.5 | 1.3 | 0.181 |
| JMB140 | 17.5 | 1.6 | 0.234 |
| JMB084 | 18 | 1.0/1.5 | 0.157/0.228 |
| JMB038 | 18.9 | 1.0 | 0.164 |
| JMB038A | 18.9 | 1.4 | 0.226 |
| JMB001 | 19.5 | 1.2/1.6 | 0.202/0.264 |
| JMB002 | 19.5 | 1.0 | 0.171 |
| JMB069 | 20 | 2.0/2.5/3.0/5.0 | 0.332/0.402/0.469/0.690 |
| JMB053 | 21.6 | 2.5 | 0.44 |
| JMB057 | 21.8 | 1.7 | 0.314 |
| JMB003 | 22 | 1.0/1.3/2.0 | 0.193/0.247/0.368 |
| JMB013 | 24 | 1.2/1.5 | 0.252/0.310 |
| JMB376 | 24.2 | 1.5 | 0.313 |
| JMB166 | 25 | 1.2 | 0.262 |
| JMB374 | 25 | 3.0 | 0.607 |
| JMB051 | 25.2 | 2.2 | 0.464 |
| JMB004 | 25.4 | 1.0/1.6/2.0/2.5 | 0.225/0.35/0.43/0.526 |
| JMB004A | 25.4 | 1.22 | 0.271 |
| JMB096 | 26 | 1.5 | 0.338 |
| JMB155 | 26 | 7.5 | 1.275 |
| JMB133 | 26.5 | 3.5 | 0.74 |
| JMB058 | 27.2 | 2^ | 0.568 |
| JMB032 | 28 | 2 | 0.478 |
| JMB052 | 28 | 3 | 0.69 |
| JMB092 | 28 | 8.75 | 1.549 |
| JMB035 | 30 | 1 | 0.267 |
| JMB154 | 30 | 4.85 | 1.149 |
| JMB384 | 30 | 2 | 0.515 |
| JMB123 | 31 | 2.5 | 0.656 |
| JMB131 | 31 | 4 | 0.994 |
| JMB043 | 32 | 1.3 | 0.367 |
| JMB043A | 32 | 6 | 1.434 |
| JMB043B | 32 | 10.75 | 2.101 |
| JMB043C | 32 | 1.05 | 0.299 |
| JMB048 | 32 | 3.15 | 0.836 |
| JMB070 | 32 | 3 | 0.8 |
| JMB088 | 32.2 | 2.95 | 0.794 |
| JMB373 | 32.2 | 3 | 0.806 |
| JMB056 | 32.4 | 1.9 | 0.532 |
| JMB101 | 33.5 | 5.25 | 1.364 |
| JMB045 | 35 | 1.25/1.5 | 0.388/0.462 |
| JMB094 | 36.4 | 2.5 | 0.78 |
| JMB049 | 37 | 3.475 | 1.071 |
| JMB009 | 38 | 1.5 | 0.503 |
| JMB010 | 38 | 1.0/1.2/1.4/1.8 | 0.340/0.406/0.471/0.599 |
| JMB040 | 38 | 2 | 0.662 |
| JMB068 | 38.1 | 1.1/3.0 | 0.375/0.968 |
| JMB134 | 38.5 | 1.5 | 0.511 |
| JMB135 | 40 | 2 | 0.699 |
| JMB090 | 40.1 | 3 | 1.024 |
| JMB060 | 41 | 1 | 0.368 |
| JMB078 | 41.5 | 3 | 1.062 |
| JMB159 | 41.6 | 7.3 | 2.303 |
| JMB146 | 42 | 1.5 | 0.558 |
| JMB152 | 42 | 2 | 0.735 |
| JMB157 | 42.7 | 2 | 0.748 |
| JMB085 | 43 | 2.2 | 0.825 |
| JMB041 | 43.5 | 2.2 | 0.836 |
| JMB063 | 44 | 1 | 0.395 |
| JMB128 | 44 | 18 | 4.303 |
| JMB132 | 44.5 | 3.5/7.35 | 1.320/2.511 |
| JMB173 | 45 | 1.3 | 0.523 |
| JMB143 | 46 | 11.25 | 3.594 |
| JMB055 | 48 | 2.2 | 0.927 |
| JMB062 | 48 | 1 | 0.432 |
| RT115 | 48.5 | 2.5 | 1.057 |
| JMB153 | 48.8 | 2.6 | 1.105 |
| JMB042 | 49 | 2.5 | 1.068 |
| JMB008 | 50 | 1.2/1.50/2.0 | 0.539/0.669/0.882 |
| JMB147 | 50 | 21 | 5.6 |
| JMB151 | 50.2 | 3 | 1.302 |
| JMB151A | 50.2 | 3.1 | 1.342 |
| JMB099 | 50.55 | 1.475 | 0.665 |
| JMB437 | 50.8 | 1.25 | 0.569 |
| JMB061 | 52 | 1 | 0.469 |
| JMB136 | 54 | 1.5 | 0.717 |
| JMB077 | 55.5 | 2 | 0.984 |
| JMB077A | 55.5 | 2.75 | 1.334 |
| JMB178 | 56 | 6.75 | 3.056 |
| JMB177 | 58 | 4 | 1.986 |
| JMB030 | 60 | 1.5/5.0 | 0.807/2.528 |
| JMB122 | 60 | 3.25 | 1.696 |
| JMB388 | 61 | 4.25 | 2.217 |
| JMB102 | 62 | 10.0 | 4.781 |
| JMB102A | 62 | 7.0 | 3.54 |
| JMB007 | 63 | 1.3 | 0.738 |
| JMB073 | 65 | 1.5 | 0.876 |
| JMB076 | 65 | 6.75 | 3.616 |
| JMB429 | 66 | 2.25 | 1.319 |
| JMB087 | 70 | 3.0 | 1.S48 |
| JMB129 | 75 | 2.5 | 1.666 |
| JMB071 | 80 | 1.3/1.8 | 0.941/1.294 |
| JMB086 | 83 | 1.5 | 1.124 |
| JMB148 | 85.1 | 13.8 | 9.047 |
| JMB160 | 87.9 | 2.0 | 1.58 |
| JMB072 | 95 | 2.5/3.0 | 2.127/2.538 |
| JMB443 | 102 | 3.0 | 2.731 |
| JMB104 | 103 | 1.8 | 1.675 |
| JMB164 | no | 1.5 | 1.497 |
| JMB161 | 113.5 | 2.2 | 2.252 |
| JMB141 | 123.5 | 15.25 | 15.179 |
| JMB149 | 125 | 6.0 | 6.565 |
| JMB138 | 126 | 1.5 | 1.717 |
| JMB162 | 140 | 2.5 | 3.161 |
| JMB067 | 150 | 2.5 | 3.39 |
| JMB083 | 160 | 4.0 | 5.738 |
| JMB103 | 200.6 | 2.8 | 5.092 |
| JMB074 | 203.2 | 3.0 | 5.522 |
| JMB394 | 240 | 4.43 | 9.596 |
| JMB392 | 500 | 6.0 | 27.254 |
| JMB039A | 15.8(grooved T-slotted） | 1.0 | 0.126 |
| JMB039 | 19.6(grooved T-slotted） | 1.0/1.5 | 0.159/0.238 |
Note: Provided cross section, serial number, dimension and weight are for reference only.
