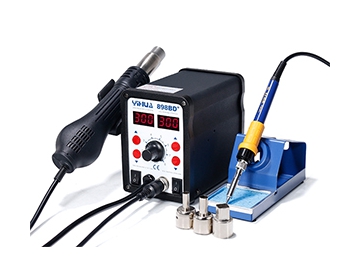

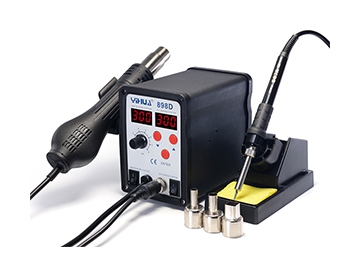

YIHUA-898BD/898BD Series Hot Air Rework Station with Soldering Iron

YIHUA-898BD/898BD  Series Hot Air Rework Station with Soldering Iron
YIHUA-898BD/898BD  Series Hot Air Rework Station with Soldering Iron
YIHUA-898BD/898BD  Series Hot Air Rework Station with Soldering Iron
Request a Quote
Features
  • The YIHUA-898BD/898BD series hot air rework station with soldering iron has 2 LED displays, respectively for air gun andiron work temperature. It has pretty appearance and good quality, because of the small case design.
  • Our YIHUA rework station is improved from YIHUA-898AD type Both of them use silicone wire for the soldering iron handle cable. The silicone wire will not be damaged within 30seconds when exposed to the 300℃soldering iron.
  • The YIHUA-898BD soldering iron uses the imported high-power heater which allows for fast temperature compensation. Aside from the general type welding spot, it is also suitable for the desoldering of large welded spots, complicated welded spots, and the like.
  • Additionally, the YIHUA-898BD soldering iron has a ferroalloy stand, so that the scalding will be avoided.
Parameters of Hot Air Rework Station with Soldering Iron
Machine
Rated Voltage AC 220V±10% 50Hz
Machine Power 730W
300℃ Constant Temperature Power 250W±10%
Working Environment 0~40℃ Relative humidity< 80%
Storage Temperature -20~80℃ Relative humidity< 80%
Machine Size 13.5*15*10cm
Weight 2.65KG
Parts
Item Hot air gun Soldering iron
Working Voltage AC 220V±10% 50Hz AC 26V±10% 50Hz
Output Power 650W 50W/75W
Temperature Range 100℃~480℃ 200℃~480℃
Airflow Mode Brushless fan ---
Airflow 120L/min (max.) ---
Temperature Stability ±5℃ (static) ±5℃ (static)
Display LED (red/green) LED (red/green)
Temperature Correction PID digital program proofreading PID digital program proofreading
PID Temperature Cycle Fast 200ms Fast 200ms
Heater Heating core ceramics heater Common metal heater (898AD use imported high-power heater)
Tips to Ground Impedance --- < 2Ω
Tips Voltage to Ground --- < 2mV

Standard Configuration
Machine: 1set
User manual: 1pc
Air gun handle: 1pc
Nozzles: 3pcs (13mm, 10mm, 8mm)
IC Puller: 1pc
Power Plug: 1pc
