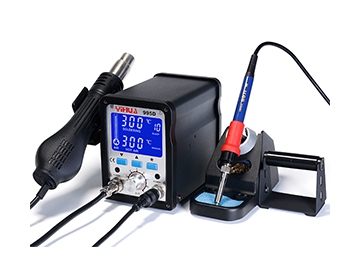

YIHUA-995D/995D LCD SMD Hot Air Rework Station with Soldering Iron

YIHUA-995D/995D  LCD SMD Hot Air Rework Station with Soldering Iron
YIHUA-995D/995D  LCD SMD Hot Air Rework Station with Soldering Iron
YIHUA-995D/995D  LCD SMD Hot Air Rework Station with Soldering Iron
Request a Quote
Features
  • YIHUA-995D/995D is updated from 995D series. This model is added with the following functions.
  • YIHUA-995D/995D LCD SMD hot air rework station with soldering iron is designed with three storages: CH1/CH2/CH3. According to the use habit or the device characteristics of assembling and disassembling, the user can set or storage three different gun and iron temperatures / airflow / display mode / iron sleep time / gun AUTO. The setting is manually accomplished.
  • This machine is added with the cooling function that can facilitate users in rapidly cooling, dismounting, and cleaning the equipment.
Parameters
Machine
Rated Voltage AC 220V±10% 50Hz
Machine Power 720W±10% (max.)
300 ℃ Isothermal Power (PID controlled, energy saving) 220W±10%
Working Environment 0 ~ 40℃ Relative humidity < 80%
Storage Temperature -20 ~ 80℃ Relative humidity < 80%
Machine Size 13.5*15*10cm
Weight 3.5KG
Parts
Item Hot air gun Soldering iron
Working Voltage AC 220V±10% 50Hz AC 26V±10% 50Hz
Output Power 650W 75W
Temperature Range 100℃ ~ 480℃ 200℃ ~ 480℃
Mode of Airflow Brushless fan ---
Airflow 120L/min (max.) ---
Temperature Stability ±1℃ (static) ±1℃ (static)
Display LED (red/green) LED (red/green)
Temperature Correction PID digital program proofreading PID digital program proofreading
PID Temperature Cycle Fast 20ms Fast 200ms
Heater Heating core ceramics heater Imported high-power heater
Tips to Ground Impedance --- < 2Ω
Tips Voltage to Ground --- < 2mV

Standard Configuration
Machine: 1 set
Specifications: 1pc
Air Gun Handle: 1pc
Nozzles: 4pcs (5mm, 8mm, 10mm, 13mm)
IC Puller: 1pc
Handle Frame: 1pc
Iron Handle (including a heater and tips): 1pc
Iron Holder: 1pc
Power Plug: 1pc

Application of Hot Air Rework Station with Soldering Iron
1. Electronic product assembly
2. Product development in scientific research departments
3. Electronic products maintenance
4. Electrical soldering operation
5. Skill training in all kinds of electronic institutions

Related Names
Surface Mount Soldering Equipment | SMT Rework Station | Precision Soldering Iron Kit
