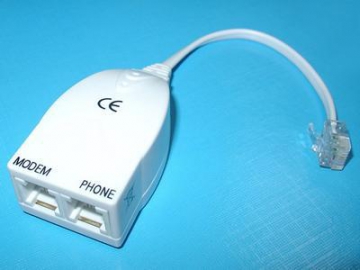

Description
FX-468DA 1 male to 2 female in-line DSL filter splitter uses one US standard RJ11 plug and two RJ11 sockets, and it is suitable for America, China, Italy and other countries.

• Performance parameter

  Mechanical durability: more than 500 times for plug in and plug out
  Direct current resistance: <25Ω
  Insulation resistance: >10MΩ
  Frequency distortion loss: ±1.0dB (200~4 KHz)
  Insertion loss: <0.3 dB (1KHz)
  Return loss: 300Hz~500Hz>14dB, 500Hz~2000Hz>18dB, 2000Hz~3400Hz>10dB
  DSL band attenuation: 30KHz~200KHz>35dB, 200KHz~2208KHz>55dB
  Adaptive temperature: -20℃~+60℃
  Adaptive humidity: 0%～96%
• Materials

  Case Shell: ABS
  RJ11 plug and socket: gold plated phosphor copper
  Weight: 31.7g

Description

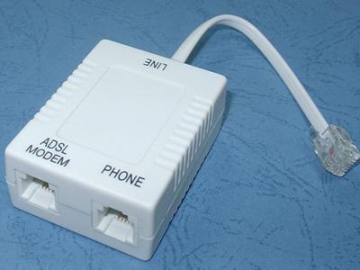

FX-US01L 1 male to 2 female in-line DSL filter splitter uses US standard RJ11 plug and sockets, and it is suitable for America, China and other countries.

• Performance parameter

  Mechanical durability: more than 500 times for plug in and plug out
  Direct current resistance: <25Ω
  Insulation resistance: >10MΩ
  Frequency distortion loss: ±1.0dB (200~4 KHz)
  Insertion loss: <0.3 dB (1KHz)
  Return loss: 300Hz~500Hz>14dB, 500Hz~2000Hz>18dB, 2000Hz~3400Hz>10dB
  DSL band attenuation: 30KHz~200KHz>35dB, 200KHz~2208KHz>55dB
  Adaptive temperature: -20℃~+60℃
  Adaptive humidity: 0%～96%
• Materials

  RJ11 plug: PC/gold plated phosphor copper
  RJ11 socket: gold plated phosphor copper
  Weight: 34g

Description

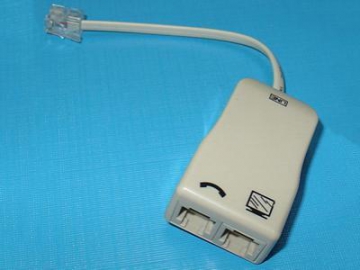

FX-US05M 1 male to 2 female in-line DSL filter splitter uses US standard RJ11 plug and sockets, and it is suitable for America, China, Brazil and other countries.

• Performance parameter

  Mechanical durability: more than 500 times for plug in and plug out
  Direct current resistance: <25Ω
  Insulation resistance: >10MΩ
  Frequency distortion loss: ±1.0dB (200~4 KHz)
  Insertion loss: <0.3 dB (1KHz)
  Return loss: 300Hz~500Hz>14dB, 500Hz~2000Hz>18dB, 2000Hz~3400Hz>10dB
  DSL band attenuation: 30KHz~200KHz>35dB, 200KHz~2208KHz>55dB
  Adaptive temperature: -20℃~+60℃
  Adaptive humidity: 0%～96%
• Materials

  Case Shell: ABS
  RJ11 plug and socket: PC/PBT/gold plated phosphor copper
  Weight: 22.1g

Description
FX-US05D 1 male to 2 female in-line DSL filter splitter uses US standard RJ11 plug and sockets, and it is suitable for America, China, Brazil and other countries.

• Performance parameter

  Mechanical durability: more than 500 times for plug in and plug out
  Direct current resistance: <25Ω
  Insulation resistance: >10MΩ
  Frequency distortion loss: ±1.0dB (200~4 KHz)
  Insertion loss: <0.3 dB (1KHz)
  Return loss: 300Hz~500Hz>14dB, 500Hz~2000Hz>18dB, 2000Hz~3400Hz>10dB
  DSL band attenuation: 30KHz~200KHz>35dB, 200KHz~2208KHz>55dB
  Adaptive temperature: -20℃~+60℃
  Adaptive humidity: 0%～96%
• Materials

  Case Shell: ABS
  RJ11 plug and socket: PC/PBT/gold plated phosphor copper
  Weight: 22.4g

Description

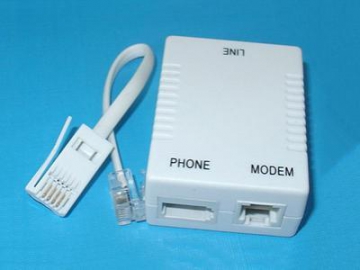

FX-UK01A 1 male to 2 female in-line DSL filter splitter uses British Telecom plug and socket with US standard socket (1×BT plug, 1×BT socket, 1×RJ11 socket) and is suitable for UK, Israel and other countries.

• Performance parameter

  Mechanical durability: more than 500 times for plug in and plug out
  Direct current resistance: <25Ω
  Insulation resistance: >10MΩ
  Frequency distortion loss: ±1.0dB (200~4 KHz)
  Insertion loss: <0.3 dB (1KHz)
  Return loss: 300Hz~500Hz>14dB, 500Hz~2000Hz>18dB, 2000Hz~3400Hz>10dB
  DSL band attenuation: 30KHz~200KHz>35dB, 200KHz~2208KHz>55dB
  Adaptive temperature: -20℃~+60℃
  Adaptive humidity: 0%～96%
• Materials

  Case Shell: ABS
  BT plug and socket: PC/PBT/gold plated phosphor copper
  RJ11 socket: gold plated phosphor copper
  Weight: 37g

Description

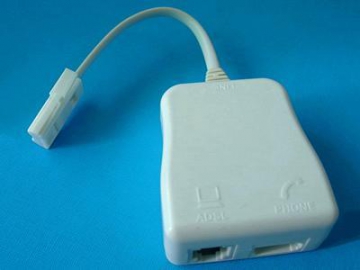

FX-UK01N 1 male to 2 female in-line DSL filter splitter uses British Telecom plug and socket with US standard socket (1×BT plug,1×BT socket,1×RJ11 socket) and is suitable for UK, Israel and other countries.

• Performance parameter

  Mechanical durability: more than 500 times for plug in and plug out
  Direct current resistance: <25Ω
  Insulation resistance: >10MΩ
  Frequency distortion loss: ±1.0dB (200~4 KHz)
  Insertion loss: <0.3 dB (1KHz)
  Return loss: 300Hz~500Hz>14dB, 500Hz~2000Hz>18dB, 2000Hz~3400Hz>10dB
  DSL band attenuation: 30KHz~200KHz>35dB, 200KHz~2208KHz>55dB
  Adaptive temperature: -20℃~+60℃
  Adaptive humidity: 0%～96%
• Materials

  Case Shell: ABS
  BT plug and socket: PC/PBT/gold plated phosphor copper
  RJ11 socket: gold plated phosphor copper
  Weight: 38g

Description

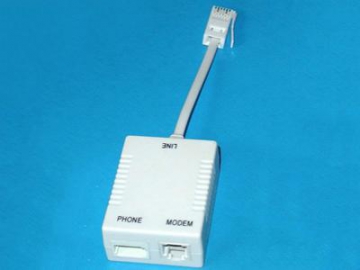

FX-UK02A 1 male to 2 female in-line DSL filter splitter uses British Telecom plug and US standard sockets (1×BT plug, 2×RJ11 sockets) and is suitable for UK, Israel and other countries.

• Performance parameter

  Mechanical durability: more than 500 times for plug in and plug out
  Direct current resistance: <25Ω
  Insulation resistance: >10MΩ
  Frequency distortion loss: ±1.0dB (200~4 KHz)
  Insertion loss: <0.3 dB (1KHz)
  Return loss: 300Hz~500Hz>14dB, 500Hz~2000Hz>18dB, 2000Hz~3400Hz>10dB
  DSL band attenuation: 30KHz~200KHz>35dB, 200KHz~2208KHz>55dB
  Adaptive temperature: -20℃~+60℃
  Adaptive humidity: 0%～96%
• Materials

  Case Shell: ABS
  BT plug and socket: PC/PBT/gold plated phosphor copper
  RJ11 socket: gold plated phosphor copper
  Weight: 38.2g

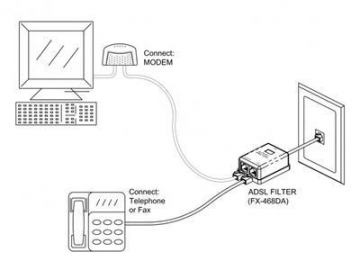

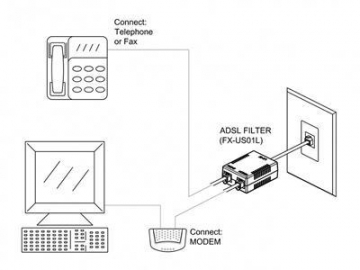

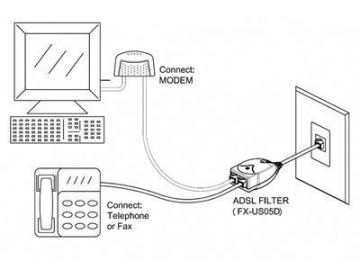

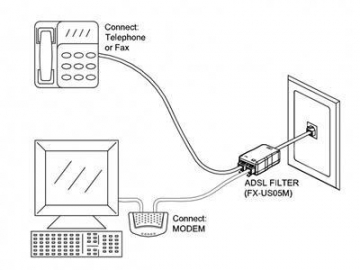

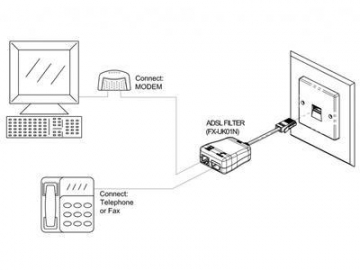

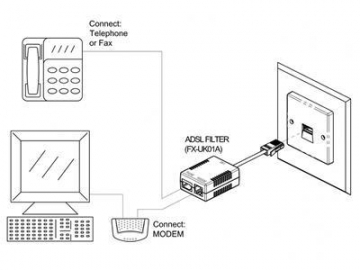

Connect in-line DSL filter splitter to the telephone wall jack.

Plug the telephone line into the socket of in-line DSL filter splitter which marked "PHONE" or phone symbol.

Connect the DSL modem to the RJ11 socket of in-line DSL filter splitter which marked "MODEM" or computer symbol.

Follow the above steps, you can use the telephone and surf the internet at the same time.

Listed above is one type of our inline DSL filter products. If it meets the requirements of your communication system, you can place an order immediately and quickly receive your items. However, if you have additional requirements in which this product may be insufficient, we have other types and can also provide you with customized DSL filter splitters to match your communication equipment.
