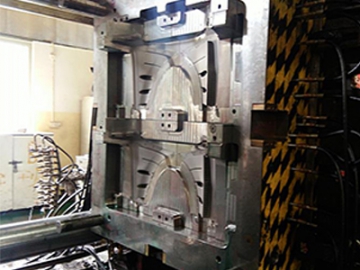

Injection Mold for Reinforcement

Reinforcements feature a variety of assembly holes, with the large mold size leaving space for assembly hole embeddings to allow for an easy modification of assembly hole position.

Project: T1XX Country: Mexico
Brand: Chevy Product: Reinforcement LH / RH
Material: ADX2343 Steel: W.1.2344(HRC48~52)
Cavity:2+2 Gating solution:8 drop Syventive hot runner to edge gate
Mold size:1950 * 1530 * 1076 Product dimension:473*421*219
Injection machine: 1300T
