Injection Mold for Power tool

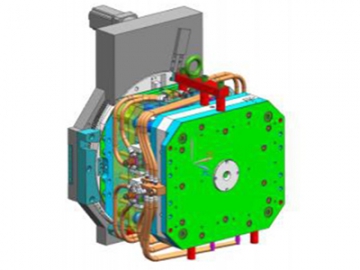

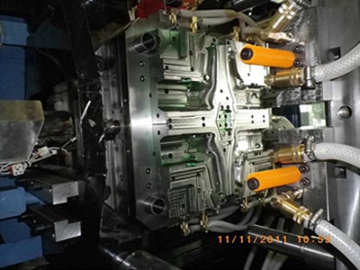

Our power tools are made using two-colors dies, and a mold cavity positioned using a locking block that is screwed onto the mold.

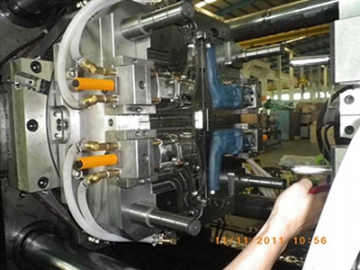

If any malfunctions do occur, the mold does not need to be taken apart for maintenance, as repair can be done while the mold is still installed on the injection machine for an increase in production efficiency.

We use beryllium copper for high temperature areas, and a single cooling channel is used for rapid cooling to avoid any deformation.

The precision tolerance is controlled within 0.02mm.

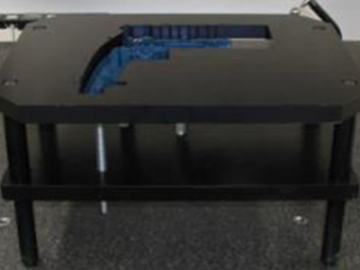

Project: Electronic drill Country: Germany
Brand: Bosch Product: Electronic drill
Material: PA66+30%GF+TPE Steel: 1.2344 HRC48-52
Cavity: 2+2 Gating solution: 4 drop Mold Master hot runner with valve gate
Mold size:750*800*480 Product size: 173*210*55
Injection machine: 300 T
