M0 Open Hopper Progressive Cavity Pump
Application
M0 Open hopper progressive cavity pumps feature a coupling shaft equipped with a helical blade that pumps sticky mediums into the chamber. This particular pump type is widely used in the following:
Starch industry: the conveyance of starch slurry, potato dregs, potato pulp, wheat gluten, paste
Environmental protection industry: the conveyance of sanitary sewage, industrial wastewater, dilute sludge, activated sludge, dewatered sludge, flocculants, additives
Food and beverage industry: the conveyance of fresh juice, beer, wine, yogurt, cheese
Max working pressure 12 bar
| Model | Flow range m3/h | Rotate speed range rpm | Motor power Kw | |
| VD040-005P04M0 | 1~7 | 200~550 | 2.2~5.5 | |
| VD050-011P04M0 | 2~14 | 180~500 | 2.2~7.5 | |
| VD060-019P04M0 | 5~22 | 160~450 | 4~11 | |
| VD070-029P04M0 | 8~30 | 150~420 | 5.5~15 | |
| VD090-053P04M0 | 10~45 | 70~350 | 7.5~22 | |
| VD100-080P04M0 | 15~60 | 70~300 | 15~37 | |
| VD120-120P04M0 | 20~80 | 70~250 | 18.5~45 | |
| VD150-230P04M0 | 30~120 | 60~200 | 22~75 | |
| VD170-300P04M0 | 40~150 | 50~150 | 30~90 |
Max working pressure 18 bar
| Model | Flow range m3/h | Rotate speed range rpm | Motor power Kw | |
| VD040-005P06M0 | 1~6 | 200~550 | 3~7.5 | |
| VD050-011P06M0 | 2~12 | 180~500 | 4~11 | |
| VD060-019P06M0 | 5~20 | 160~450 | 5.5~15 | |
| VD070-029P06M0 | 8~25 | 150~420 | 7.5~18.5 | |
| VD090-053P06M0 | 10~40 | 70~350 | 11~30 | |
| VD100-080P06M0 | 15~50 | 70~300 | 15~45 | |
| VD120-120P06M0 | 20~70 | 70~250 | 18.5~55 | |
| VD150-230P06M0 | 30~110 | 60~200 | 30~90 | |
| VD170-300P06M0 | 40~130 | 50~150 | 45~110 |
Max working pressure 24 bar
| Model | Flow range m3/h | Rotate speed range rpm | Motor power Kw | |
| VD040-005P08M0 | 1~5 | 200~550 | 4~11 | |
| VD050-011P08M0 | 2~10 | 180~500 | 5.5~15 | |
| VD060-019P08M0 | 5~18 | 160~450 | 7.5~18.5 | |
| VD070-029P08M0 | 8~23 | 150~420 | 11~30 | |
| VD090-053P08M0 | 5~35 | 70~350 | 15~45 | |
| VD100-080P08M0 | 8~45 | 70~300 | 18.5~55 | |
| VD120-120P08M0 | 10~33 | 70~250 | 30~90 | |
| VD150-230P08M0 | 15~100 | 60~200 | 45~110 |

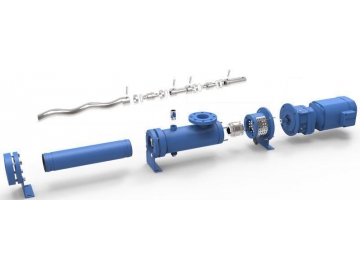

Working principle of the progressive cavity pump:
A progressive cavity pump is a displacement pump that, with an interference fit of the rotor in an eccentric motion and a fixed stator, will form a seal cage within the pump, moving material from the inlet to the outlet, thus completing the conveyance of the medium within the seal cage.

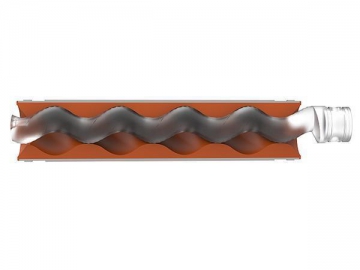

- The stator and the rotor

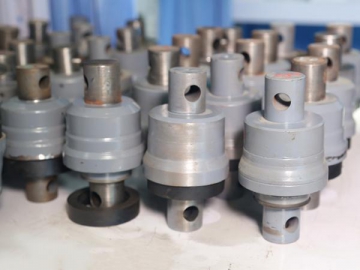

- Metal universal joint

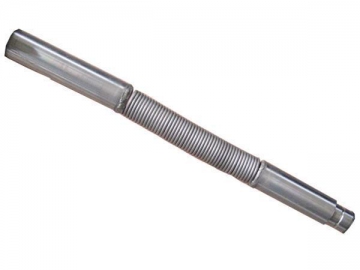

- Spring universal joint

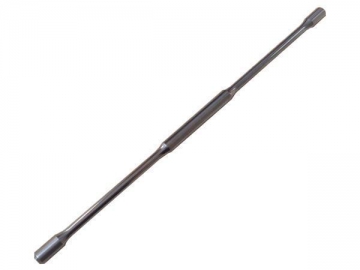

- Cross pin universal joint
The rotor
The rotor shape can be designed as per customer requirements. For a metal rotor, after surface hardening or a vacuum heat treatment, the hardness can reach up to HRC65-67.
The stator
Materials: NBR, NBRH, HNBR, EPDM and FKM- all of which meet various working conditions
Universal joint
Alternative universal joints include a pin type universal joint, pin and bush joint, sanitary universal joint, flexible universal joint, spherical teeth universal joint, cross universal joint and other joints.
Shaft seal
The packing seal and mechanical seal can be selected based on working conditions. The cooling system and flushing system can also be selected for the best possible way to prolong the shaft service life.
Driving system
The alternative driving system includes several high quality driving systems, such as SEW, NORD, ABB and others.
Weifang Subtor as a German Subtor invested company in China, offers wide range of progressive cavity pumps and components. The M0 class open hopper progressive cavity pump has typical applications as food and drink pumping, slurry pumping, industrial sewage pumping, etc. A progressive cavity pump is a type of positive displacement pump, also known as eccentric screw pump. With German supported technology and rich marketing resources, Subtor provides quality PCP pumps with custom solutions for global clients.
