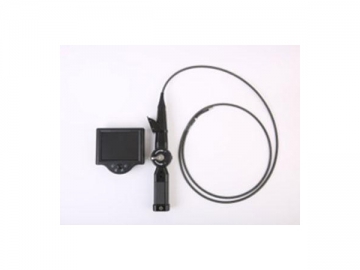

EC (Easy Control) industrial borescopes are exceptionally scalable and feature hoses with different diameter and length specifications, with diameter ranging between 2.8mm to 6.5mm. Equipped with appropriate hose lens, the borescopes can be used in a variety of fields. The interface of our borescopes meets international standards, and the cameras utilize different pixel levels depending on customer needs, with a maximum of 2 milling pixels.

Features
  • A probe wire can be inserted and replaced, with different pixels, lengths, diameters and light sources.
  • Probe wire diameter: 6.5mm/6.0mm/4.3mm/3.9mm/2.8mm
  • Camera pixel: 2 million pixels/1 million pixels/480,000 pixels
  • Light source: infrared source/ white-light source/UV light source

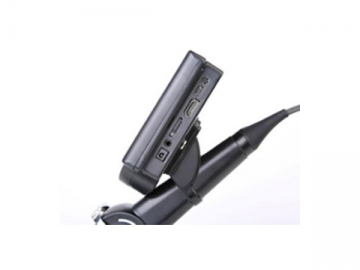

  • Portable and integrated body allows users to carry out all functions, including bending, photo taking, and image processing with just one hand.

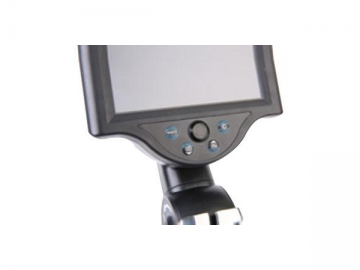

  • 5" HD 4:3 digital touch LCD for clearer high-resolution true-color images
  • 360°mechanical mute bending, with bending with stop
  • 18650 lithium battery & alternating current dual power supply; easy battery replacement; duration of working time over 3 hours
  • HD HDMI output; WiFi/bluetooth/wireless emission/multi-mode image sharing
EC SPECIFICATION
PROBE Replaceable Pixel: 480,000 Pixel / 360,000 Pixel
Diameter: 6.0mm / 4.3mm / 3.9mm / 3.0mm /2.8mm
FOV: 90°
View Direction Farward View/ Farward view+Side view Dual Camera
Probe Length 1~8 meters with tungsten mesh
Articulation 4 Ways Mechanical control
SYSTEM Displayer 5 Inch Touch Screen LCD
Memory TF Card Support 8G~128G
Output Interface USB2.0/HDMI out/ Earphone out
Power 2x18650 Li-battery/110~220V AC
Wireless WiFi/Bluetooth for Android
Size 305*135*110 (L*W*H)
Weight 0.78Kg (Include Battery)
Waterproof Probe: IP67
Working Temperature -10~50°
Software Menu Touch Screen control
Image process Image Zoom In&Out; Image Size & Color Editing; Image Contrast system; Image & Folder Rename
Lightness 5 level LED/ Fibre light adjust (can support IR Light + White Light Dual Light Source) 5 level image brightness adjust
Storage Image/Video/Audio record
Language English/Chinese/French/Korean/German/Russian/Japanese/ etc.
