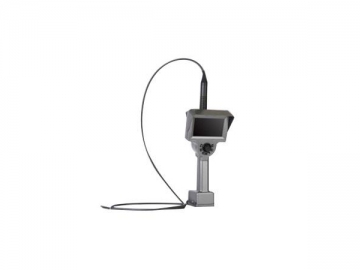

ET65 industrial videoscopes produced by E-vision feature an imaging quality of 2 million pixels, and we traditionally recommend a lens of 6.5mm. According to customer requirements, we also outfit these lenses with different diameters and a length ranging between 1 to 6 meters. Backed by more than 10 years of videoscope production experience, our videoscopes are used in automobile inspection, pipeline inspection, casting inspection and other fields. The display units are 5-inch LCD touch screens, which allow users to freely zoom in and out on a mobile phone for a more intuitive visual experience to quickly locate the imaging point and identify any problems. We also offer customized videoscopes, with customers able to equip them with different lenses, soft probes, display units, and joysticks to meet different working environment needs.

Features
  • ET65 Industrial Videoscopes adopt 1080P 2-Megapixel camera chip with 1600X1200 photo size and wide-angle sapphire glass lens with 120 degrees.

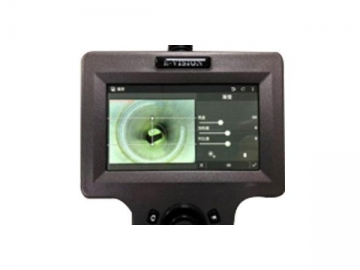

  • Built-in multiple picture information and image color processing system.

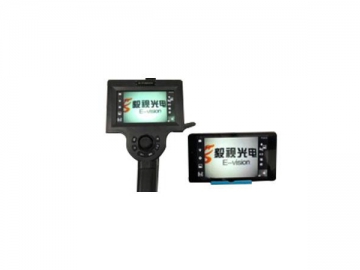

  • Wifi/bluetooth/wireless/4G multi-mode wireless image transmission system (including synchronous image and audio recording)

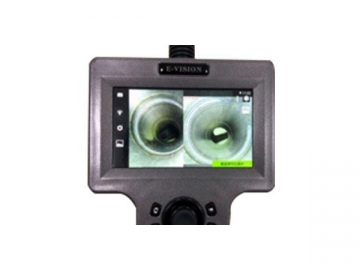

  • Built-in left and right split-screen photo display comparison system as well as image and folder renaming functions.

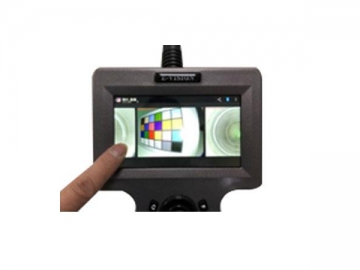

  • 5 "1920*1080 HD touch screen - Zoom in and out easily.
ET65 SPECIFICATION
Probe Pixel: 2,000,000 Pixel
Diameter: 6.5mm
FOV: 120°
View Direction Forward View
Probe Length 1~6 meters with tungsten mesh
Articulation 360°with Motor or Mechanical control
System Displayer 5 Inch Touch Screen LCD (1920*1080)
Memory TF Card Support 8G~128G
Output Interface USB2.0/HDMI out/ Earphone out
Power 2x26650 Li-battery/110~220V AC
Wireless WiFi/Bluetooth for Android
Size 330*148*150 (L*W*H)
Weight 1.2Kg (Include Battery)
Waterproof Probe: IP67
Working Temperature -10~50°
Software Menu Touch Screen control
Image process Image Zoom In & Out; Image Size & Color Editing; Image Contrast system; Image & Folder Rename
Lightness 5 level LED/ Fiber light adjust 5 level image brightness adjust
Storage Image/Video/Audio record
Language English/Chinese/French/Korean/German/Russian/Japanese/ etc.
