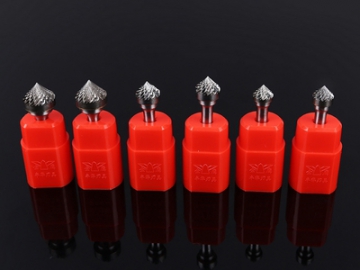

90 Degree Cone Shape Carbide Bur
Request a Quote
- Single cut and double cut
- 6mm shank
- YG8 Tungsten carbide
| Dimension (mm) | ||||
| Cutting Edge Diameter | Flute length | Shank diameter | Overall length | Conical degree |
| 6 | 3 | 6 | 55 | 90° |
| 8 | 4 | 6 | 52 | 90° |
| 10 | 5 | 6 | 50 | 90° |
| 12 | 6 | 6 | 51 | 90° |
| 16 | 8 | 6 | 53 | 90° |
Technical Data
- Hardness of shank: 40-45 HRC
- Hardness of tungsten steel: HRA 90-91
- Concentricity of cylindrical rotary file: 0.1 mm
