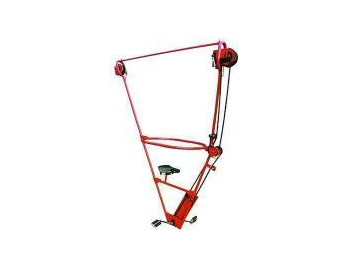

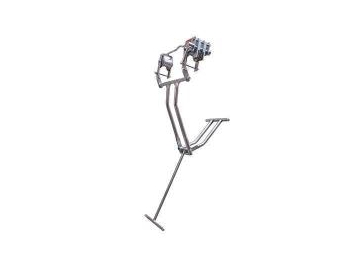

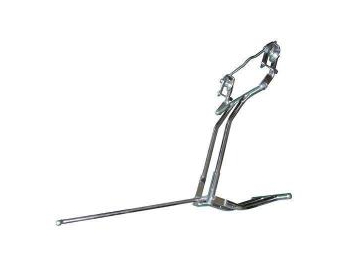

Single Conductor Line Cart
Request a Quote
Our single conductor line cart serves to mount the conductor attachments as well as inspect the lines on single conductor, and some others. SFD1A type product is used for telecommunication system.
Specifications
| Item number | Model | Rate load (kN) | Diameter of wheel (mm) | Maximum through diameter (mm) | Weight (kg) |
| 17261 | SFD1A | 1 | Φ55 | Φ25 | 7 |
| 17262 | SFD1B | 1 | Φ80 | Φ40 | 7 |
| 17264 | SFD3 | 1 | Φ160 | Φ40 | 34 |
Uses: To install accessories and inspection on single conductor. SFD1A is used for telecommunications cable.
