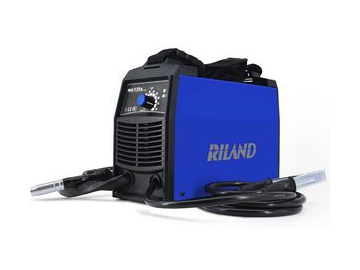

MIG 135E
Features
- Equipped with RILAND’s self-developed RICHI chip and use the advanced IGBT inverter technology;
- Available to 1kg flux-cored self-shield wire, actually welding without gas;
- Synergy, greatly reduce difficulties to adjustment, especially for new welding operator;
- Stable welding performance on small current around 20A, enhancing the capacity to weld thinner metal;
- Lower spatter than that of general flux-cored welding machine;
- Wire inching function act as you press the trigger about 3s under no load;
- Fan as needed, reduce noise and dust inside the machine;
- Intelligent protection: over-current, over-voltage, over heating protection;
Specifications
| Model | | |
| Power supply (V) | 1 phases 120V±15% | 1 phases 230V±15% |
| Frequency (Hz) | 50/60 | 50/60 |
| No-load voltage (V) | 55 | 58 |
| Rated input current (A) | 21.4 | 13.4 |
| Output current range (A) | 45 - 90 | 45-90 |
| Output voltage range (V) | 16.3 - 18.5 | 16.3 - 18.5 |
| Duty cycle | 20% @90A | 20% @ 90A |
| Power factor | >0.7 | >0.7 |
| Efficiency (%) | ≥80 | ≥80 |
| Type of wire feeder | Internal | Internal |
| Welding wire diameter (mm) | 0.8 | 0.8 |
| Insulation class | Class F | Class F |
| Protection grade | IP21S | IP21S |
| Weight without wire drive roll (kg) | 5.4 | 5.4 |

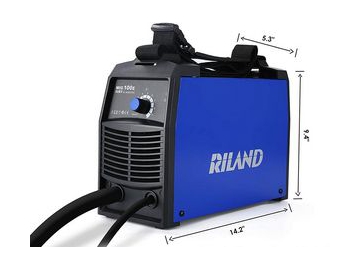

| Dimensions (L×W×H) (mm) | 318×135×240 | 318×135×240 |

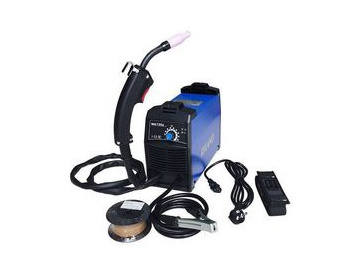

Package Included

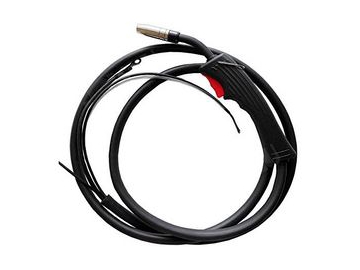

- MIG welding torch

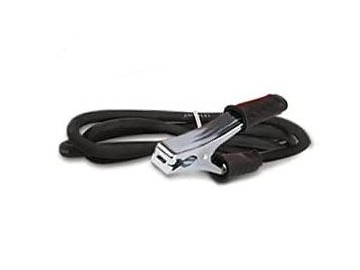

- Ground clamp & cable assembly

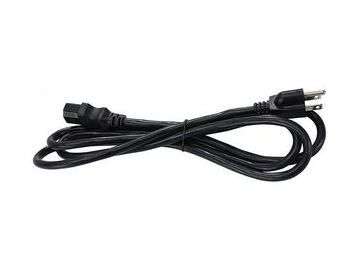

- Power cord
- 2m shoulder strap

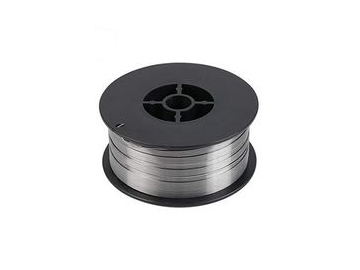

- E71T-GS self-shielded flux-cored wire (Ø0.8mm)
Applications
Optional Welding Accessories
Steel welding wire brush
Welding safety goggles
Hand-held welding shield
Welding gloves
E71T-GS self-shielded flux-cored wire (Ø0.8mm)
Wire feed drive roll
