EMT10 2 Flute Carbide End Mill for Aluminum

EMT10 2 Flute Carbide End Mill for Aluminum
EMT10 2 Flute Carbide End Mill for Aluminum
EMT10 2 Flute Carbide End Mill for Aluminum
Request a Quote
  • Features excellent surface finishes, superior chips ejection and long tool life
  • High-quality aluminum milling cutters are available with TiN, TiCN & TiAIN coating upon request
  • Center & slotting cutting

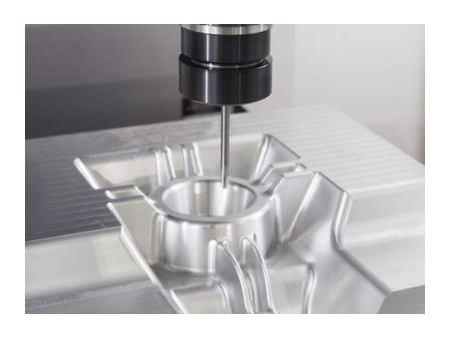

Application
Product Specifications
Coating Uncoated /DLC Work Material Aluminum Alloy / Copper Alloy / Graphite / Resin
Helix Angle 35°/36°/37° Shank Cylindrical H6
Material IMC™ Carbide Rod Tolerance on Cutting Diameter 0-0.030
Carbide 2 Flute End Mill for Aluminum (UNT-EMT10) - Economical Style
Unit: mm
UNT EDP # Click to Order Mill Dia.
D1
Shank Dia.
D2
Flute Length
L1
O.A.L.
L2
Flutes
EMT10010 1.0 4 3 50 2
EMT10015 1.5 4 4 50 2
EMT10020 2.0 4 6 50 2
EMT10025 2.5 4 6 50 2
EMT10030 3.0 4 8 50 2
EMT10040 4.0 4 11 50 2
EMT10050 5.0 6 13 50 2
EMT10060 6.0 6 16 50 2
EMT10070 7.0 8 20 60 2
EMT10080 8.0 8 20 60 2
EMT10090 9.0 10 25 75 2
EMT10100 10.0 10 25 75 2
EMT10120 12.0 12 30 75 2
EMT10140 14.0 14 40 100 2
EMT10160 16.0 16 40 100 2
EMT10200 20.0 20 40 100 2

• End mills with non-standard sizes or specifications not listed above can be customized according to customer needs.
