HD(720P) Wireless Video surveillance System, CM692732

HD(720P) Wireless Video surveillance System, CM692732
HD(720P) Wireless Video surveillance System, CM692732
Request a Quote

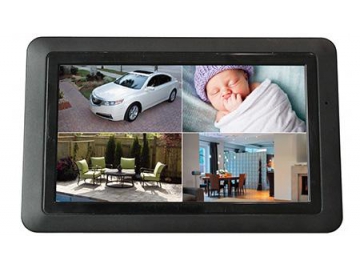

The CM692732 touchscreen wireless monitor is designed for indoor and outdoor uses and allows for both remote monitoring from your phone and watching on the monitor. With a waterproof level of IP65, it is applicable for outdoor environments, and the 6 white LEDs and night vision allow for nighttime monitoring and illumination for added security. The infrared motion sensor snaps still pictures or short, 15 second video clips from within the surveillance range and saves them to SD storage. This monitor supports an SD card maximum capacity of 128 gigs.

The 7 inch monitor and high definition display offer a great performance, and the wireless monitor connects up to 4 cameras for simultaneous viewing of more than one location. The built in, chargeable lithium ion batteries provide power for short, limited periods of time to ensure continuous monitoring in the event of a power failure.

Specifications
Operating Frequency Range 2.400GHz~2.483GHz
TX Power 16dBm (typical)
RX Sensitivity -81dBm
Type of Spread Spectrum Used FHSS
Type of Modulation Used GFSK
Data Rate 4Mbps
Transmitting Range 300m line of sight
Camera
Image sensor type 1/4" Color 1.0 Megapixel CMOS Image sensor
Effective Pixel 1280 (H) x 720 (V)
Power requirement 9V DC 2A
Image Resolution Cam x 2 : 720px1 @ 15 fps
Cam x 2 : VGAx2 @ 25 fps
Cam x 4 : QVGAx4 @ 25 fps
/ VGA x 4 @ 15 fps
Lens 3.6mm F2.0
Viewing Angle (Diagonal) 70° (FOV)
IR LED / Night Vision Range 12m
PIR angle (horizontal) 60°
PIR range (25°C) 5m
Weather proof IP65
Operation temperature -20~40°C
Camera Housing Material Aluminium
LCD Monitor
LCD Panel size 7 Inch
LCD Resolution 800 RGB (H) x 480 (V)
View Angle H: 140° V: 110°
Operating Temperature 14°F ~ 104°F (-10°C ~ 40°C)
Operating Humidity 0% ~ 85%
Power requirement 5V DC 2A
