EMT12 3 Flute Carbide End Mill for Aluminum, Long Length
Request a Quote
- Designed to low hardness materials (under HRc40), Aluminum, Aluminum Die Cast, Copper, Non-Ferrous Alloy and Plastic.
- 3 Flute design “To the center” - all 3 flutes come to the center, good surface finishes
- Excellent performance with high feed, high RPM, high chip removal(heavy cutting)
- Profile, Slot, Chamfer Cutting

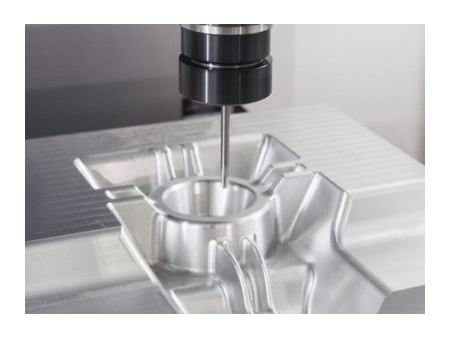

Application
Product Specifications
| Coating | Uncoated /DLC | Work Material | Aluminum Alloy / Copper Alloy / Graphite / Resin |
| Helix Angle | 35°/36°/37° | Shank | Cylindrical H6 |
| Material | IMC™ Carbide Rod | Tolerance on Cutting Diameter | 0-0.030 |
Carbide 3 Flute End Mill for Aluminum, Long Length (UNT-EMT12) - Economical Style
| UNT EDP # Click to Order | Mill Dia. D1 | Shank Dia. D2 | Flute Length L1 | O.A.L. L2 | Flutes |
| EMT12010075 | 1.0 | 4 | 5 | 75 | 3 |
| EMT12015075 | 1.5 | 4 | 6 | 75 | 3 |
| EMT12020075 | 2.0 | 4 | 8 | 75 | 3 |
| EMT12025075 | 2.5 | 4 | 8 | 75 | 3 |
| EMT12030075 | 3.0 | 4 | 10 | 75 | 3 |
| EMT12040075 | 4.0 | 4 | 12 | 75 | 3 |
| EMT12040100 | 4.0 | 4 | 12 | 100 | 3 |
| EMT12050075 | 5.0 | 6 | 16 | 75 | 3 |
| EMT12050100 | 5.0 | 6 | 16 | 100 | 3 |
| EMT12060075 | 6.0 | 6 | 25 | 75 | 3 |
| EMT12060100 | 6.0 | 6 | 30 | 100 | 3 |
| EMT12080075 | 8.0 | 8 | 25 | 75 | 3 |
| EMT12080100 | 8.0 | 8 | 35 | 100 | 3 |
| EMT12100100 | 10.0 | 10 | 40 | 100 | 3 |
| EMT12120100 | 12.0 | 12 | 45 | 100 | 3 |
• End mills with non-standard sizes or specifications not listed above can be customized according to customer needs.
