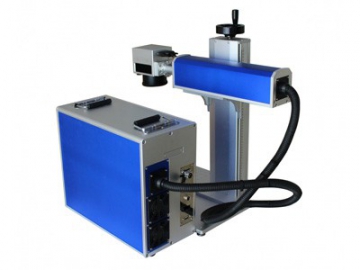

Fiber Laser Marker, FOL-M Series

Fiber Laser Marker, FOL-M Series
Fiber Laser Marker, FOL-M Series
Fiber Laser Marker, FOL-M Series
Fiber Laser Marker, FOL-M Series
Fiber Laser Marker, FOL-M Series
Fiber Laser Marker, FOL-M Series
Fiber Laser Marker, FOL-M Series
Fiber Laser Marker, FOL-M Series
Fiber Laser Marker, FOL-M Series
Fiber Laser Marker, FOL-M Series
Fiber Laser Marker, FOL-M Series
Fiber Laser Marker, FOL-M Series
Fiber Laser Marker, FOL-M Series
Fiber Laser Marker, FOL-M Series
Fiber Laser Marker, FOL-M Series
Fiber Laser Marker, FOL-M Series
Fiber Laser Marker, FOL-M Series
Request a Quote

FOL-M series fiber laser marker can mark trademark, model, production date, serial number or other texts or patterns on most metal materials and a few non-metallic materials.

Applicable materials:
Plastic, steel, stainless steel, aluminum-magnesium alloy, zinc alloy, copper, nickel plating material, galvanized material, alumina, etc.

Features
  • Fiber laser marker marks materials with thin and condensed light beam which ensures small heat affected zone and high processing efficiency.
  • This machine is equipped with high-speed scanning galvanometer mirror system. Its minimum line width is 0.015mm.
  • It has a human-oriented operation system which is convenient to use.
  • The control software of this fiber laser marker is compatible with various graphic formats.
  • Its marking effect is permanent and won’t deform.
Technical Parameters
Model FOL-20M / FOL-30M / FOL-50M
Laser power 20W / 30W / 50W
Laser type Fiber laser
Machine power 500W
Minimum line width 0.015mm
Wave length 1064nm
Marking speed 8000mm/s
Marking Area 50*50/110*110/150*150/200*200mm/300*300mm (optional)
Operating voltage AC220±10% 50Hz / AC110±10% 60Hz
Cooling type Air cooling and protection system
Acceptable graphic format PLT, PCX, DXF, BMP, AI
Operating temperature range 15-35°C
Minimum character 0.15mm
Repeat position accuracy ±0.001mm
weight 50kgs
Samples
