Continuous Extrusion Machine for Copper Busbar and Profile

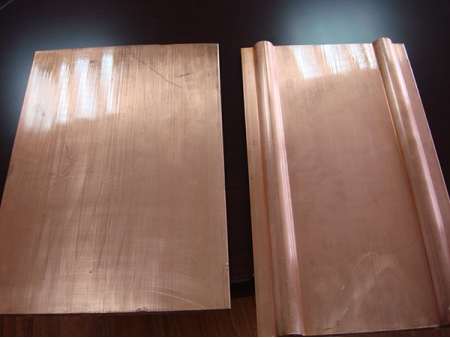

Adopting Φ22 mm oxygen-free copper rod made via the upward casting process as the feedstock, this series of continuous rotary extrusion line is capable of producing copper busbars and profiled bars with width ranging from 170 to 240mm. The touch screen for the electrical control system ensures easy and convenient operation.

    Diagram of production line
    Technical Specifications
    Model TJ500
    Nominal Diameter of Extrusion Wheel(mm) Φ500
    Power of Main Motor(kW) 400
    Feed Stock Diameter(mm) Φ22
    Copper Bar Max. Width(mm) 260
    Copper Bar Max. Diameter(mm) Φ100
    Sectional Area Range(mm²) 200-4000
    Average Output (kg/h) 1900
