Cable Reel Trailer
Request a Quote

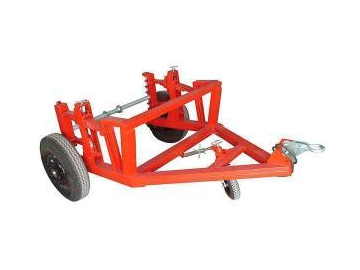

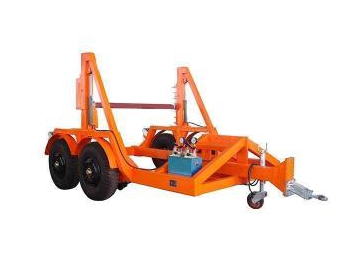

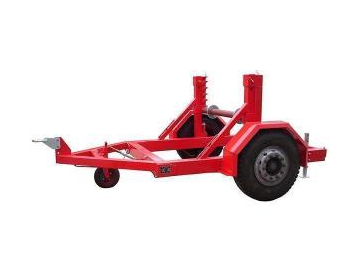

This cable reel trailer is primarily used for short-distance transportation. Also, it can function as the pay-out stand during the reel construction. The maximum speed for towing a trailer can reach 15km/h.
The 21142 type product is designed with the integral rotary structure, while others possess the up-down structure operated by hydraulic cylinder. Furthermore, the 21154 type makes use of the two-tire configuration. Its trailer structure can be disassembled for convenient transportation.
Detailed Data
| Item Number | Model | Applicable Reel | Diameter of Axle (mm) | Overall Dimensions (mm) | Weight (kg) | ||
| Width (mm) | Diameter (mm) | Weight (kg) | |||||
| 21152 | DLG4 | 1500 | Φ2400 | 4000 | Φ65 | 3645×2500×1500 | 800 |
| 21153 | DLG8A | 1600 | Φ3200 | 8000 | Φ89 | 4560×2708×1857 | 1200 |
| 21154 | DLG12 | 2360 | Φ3600 | 12000 | Φ95 | 6000×3370×2770 | 2500 |
