Request a Quote

(630A, European Standard)

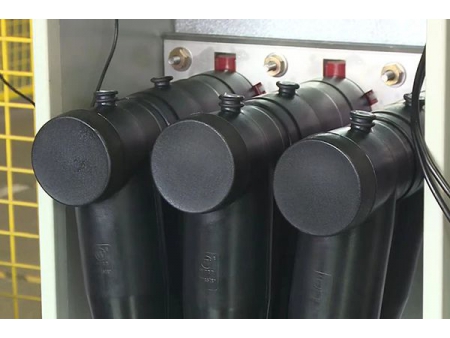

This connector set includes a separable connector that links cables to interface C bushings, like transformers and switchgears, and a rear connector to work as a connector extension. It is made of EPDM and an insulation layer will be moulded between the insert and the jacket after being connected to epoxy-resin-coated cables.

Features
  • Pass all our factory tests;
  • Meet the requirements of IEC60502-4 and HD629.1 standards;

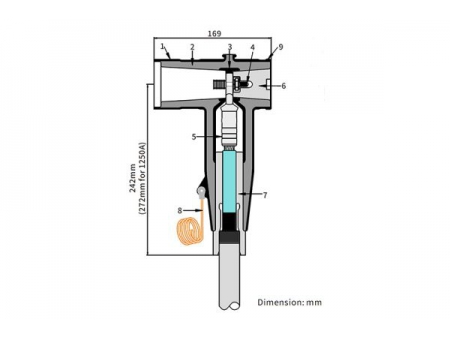

15kV 630A Bolted Separable Tee Connector

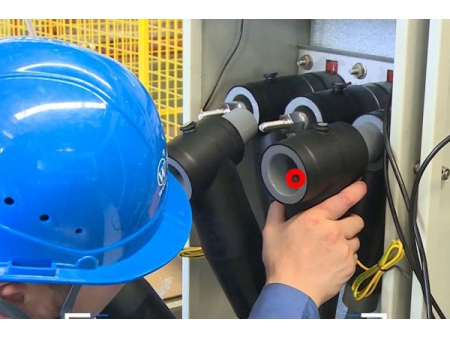

This bolted separable tee connector allows cables to be connected together. It is suitable for electrical system rated 8.7/15(17.5)kV. The tee connector links cables to interface C bushings, like ring main units, cable branch boxes, transformers and switchgears, which ensure insulation and form a ring power network. It is made of EPDM and an insulation layer will be moulded between the insert and the jacket after being connected to epoxy-resin-coated cables.

Apart from supplying quality separable tee connectors, customization services are provided, for instance, the laser engraving of your company’s logo on the surface of the connector. Once you have ordered, we will carry out production at full steam to ensure swift delivery of the products

Download
Features
  • Pass all factory tests;
  • Meet the requirements of GB/T12706.4, HD629.1 and IEC60502-4;
  • Obtain a formal test report issued by a third-party laboratory;
Technical Data
Voltage Class 12kV 17.5kV
Continuous Current Up to 1250A Up to 1250A
AC Withstand Voltage 28.5kV for 5min 39kV for 5min
Partial Discharge 11kV, ≤10pC 15kV, ≤10pC
Impulse Withstand Voltage (10 times for each polarity) 95kV 95kV
Screen Resistance ≤5000Ω ≤5000Ω

Ordering instruction
The ordering formula as followed:
Step 1: Choose the system voltage and current: 15/630
Step 2: Select the range from Table D that fits the diameter over cable insulation
Step 3: Select the conductor code from Table C for the conductor size and type
Step 4: Select the package. 1: 1pc/kit; 3: 3pcs/kit.

Table D
Diameter over cable insulation

Insulation Range Code Diameter Over Cable Insulation Ø(mm)
Min. Max.
A 14 16
B 16 18
C 17 20
D 20 23
E 23 26
F 26 30
G 30 33
H 33 36
I 36 39
J 40 42

Table C
Conductor Code

Conductor Cross-section ( ) Lug Code
Copper Lug (Hexagonal Compression) Aluminum Lug (Mechanical Bolted)
25 01C M1(AULZ25-95-16) - -
35 02C - -
50 03C - -
70 04C M2(AULZ70-240-16) -
95 05C -
120 06C - -
150 07C - -
185 08C - M3(AULZ185-400-16)
240 09C -
300 10C - -
400 11C - -
500 12C - - -
630 13C - - -

Ordering example
The cable is 15kV, 3-core 95mm^2 copper conductor with core insulation diameter of 22mm. Order WEBIII 15/630D05C3.

Note
Sealing or solderless grounding kits shall be ordered separately
Insulated plug with capacitive test point is available upon request.
Please add "-X" for cable with copper wire shield without armour, like WEBIII 15/630D05C3-X.
Feel free to contact us for detailed information.

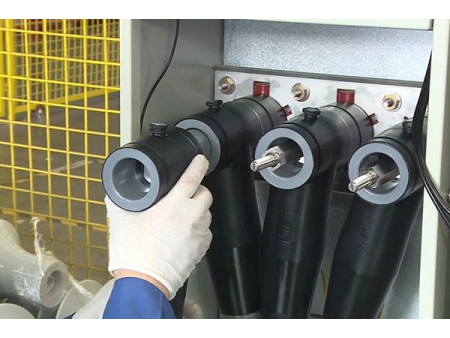

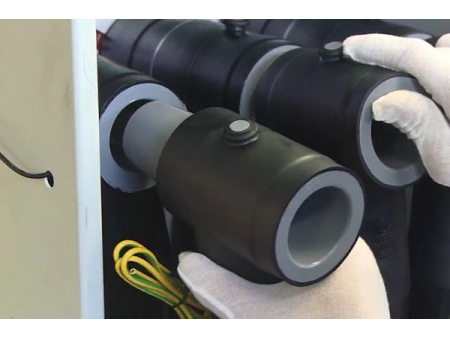

15kV 630A Bolted Separable Rear Connector

This bolted separable rear connector is suitable for electrical system rated 15kV with continuous current rated 630A. It cannot be directly connected with equipment or bushings. Instead, this rear connector works as a connector extension, operating in step with another one or the one with surge arrester.

Download
Features
  • Compact design, 100 mm to another connector, suitable for small bushings;
  • No earthing wire, insulation is achieved by rubber and air;
  • This separable rear connector is made of premium EPDM that has excellent electrical properties and outstanding mechanical strength. It also features high resistance to tear, ozone gas, oxidation and corrosion;
  • This bolted rear connector works with good thermal stability and delivers thermodynamic performance. Its marvelous sealing performance allows for underwater operation;
15kV 630A Rear Surge Arrester

Rear surge arrester is used to provide over-voltage protection for electrical equipment. Its special design allows for timely minimization of over-voltage caused by lightning.

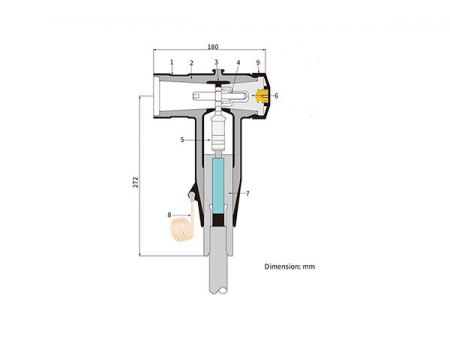

24kV 630A Bolted Separable Tee Connector

This bolted separable tee connector allows cables to be connected together. It is suitable for electrical system rated smaller than 24kV. The Tee connector links cables to interface C bushings, like ring main units, cable branch boxes, transformers and switchgears, which ensures insulation and forms a ring power network. It is made of EPDM and an insulation layer will be moulded between the insert and the jacket after being connected to epoxy-resin-coated cables.

Apart from supplying quality connectors, we will also provide customization services, for instance, the laser engraving of your company’s logo on the surface of the connector. Once you have ordered, we will carry out production at full steam to ensure swift delivery of the products

Download
Features
  • Pass all factory tests;
  • Meet the requirements of GB/T12706.4, HD629.1 and IEC60502-4;
  • Obtain a formal test report issued by a third-party laboratory;
Technical Data
Voltage Class 24kV
Continuous Current Up to 630A
AC Withstand Voltage 54kV for 5min
Partial Discharge 20kV,≤10pC
Impulse Withstand Voltage (10 times for each polarity) 125kV
Screen Resistance ≤5000Ω
Screen Fault Current Initiation For solidly/unearthed /impedance earthed system

24kV 630A Bolted Separable Rear Connector

This bolted separable rear connector is suitable for electrical system rated 24kV with continuous current rated 630A. It cannot be connected with equipment or bushings. Instead, this rear connector works as a connector extension, operating in step with another one or the one with surge arrester.

Download
Features
  • Compact design, 100 mm to another connector, suitable for small bushings;
  • No earthing wire, insulation achieved by rubber and air;
  • This separable rear connector is made of premium EPDM that has excellent electrical properties and outstanding mechanical strength. It also features high resistance to tear, ozone gas, oxidation and corrosion;
  • This bolted rear connector works with good thermal stability and delivers thermodynamic performance. Its marvelous sealing performance allows for underwater operation;
24kV 630A Rear Surge Arrester

This rear surge arrester is used to provide over-voltage protection for electrical equipment. Its special design allows for timely minimization of over-voltage caused by lightning.


33kV 630A Bolted Separable Tee Connector

Separable Connectors Mated with EN50180&50181
Woer Electric produces a range of separable elbow, straight and tee connector kits.
Our separable connectors are widely used in switchgears, transformers, cabinets and other electrical equipments. This separable rear connector is made of EPDM or silicone rubber with integrated field control.

Woer Electric adopts advanced triple-layer (a conductive inner layer, an insulation layer and a conductive outer layer) injection technique to guarantee the interface property to avoid gaps between layers and decrease partial discharge maximally. Our separable connectors are mainly delivered in 3-phase kit. Each kit contains all the necessary accessories. Every Woer Electric product has been designed and test according to IEC and other industry standards.

Standard Description
EN 50181 Plug-in type bushings above 1kV up to 52kV and from 250A to 2.5kA for equipment other than liquid filled transformers
EN 50180 Bushings above 1kV up to 36kV and from 250A to 3.15kA for liquid filled transformers
HD629.1 Test requirements on accessories for used on power cables of rated voltage from 3.6/6(7.2)kV up to 20.8/36(42)kV-Part 1:cables with extruded insulation
IEC 60502.4 Power cable with extruded insulation and their accessories for rated voltages from 1kV(U=1.2kV) up to 30kV(U=36kV)-part 4: test requirements on accessories for cable with rated voltages from 6kV up to 30kV(U=36kV)
IEC 60099 Metal oxide surge arresters without gaps for a.c. systems
JB/T 8952 Polymer-housed metal oxide surge arresters without gaps for a.c. systems
Brief instruction for bushing interface according to EN50180&50181
Bushing Interface Interface Description Standard
250A Series Apparatus Bushing 250A Plug-in EN50180&50181 Interface type A
630A Series Apparatus Bushing 630A Bolted EN50180&50181 Interface type C
630A outside cone bolted-type bushing 630A Bolted EN50180&50181 Interface type E

33kV 630A Bolted Separable Rear Connector

Separable Connectors Mated with EN50180&50181
Woer Electric produces a range of separable elbow, straight and tee connector kits.
Our separable connectors are widely used in switchgears, transformers, cabinets and other electrical equipments. This separable rear connector is made of EPDM or silicone rubber with integrated field control.

Woer Electric adopts advanced triple-layer (a conductive inner layer, an insulation layer and a conductive outer layer) injection technique to guarantee the interface property to avoid gaps between layers and decrease partial discharge maximally. Our separable connectors are mainly delivered in 3-phase kit. Each kit contains all the necessary accessories. Every Woer Electric product has been designed and test according to IEC and other industry standards.

Standard Description
EN 50181 Plug-in type bushings above 1kV up to 52kV and from 250A to 2.5kA for equipment other than liquid filled transformers
EN 50180 Bushings above 1kV up to 36kV and from 250A to 3.15kA for liquid filled transformers
HD629.1 Test requirements on accessories for used on power cables of rated voltage from 3.6/6(7.2)kV up to 20.8/36(42)kV-Part 1:cables with extruded insulation
IEC 60502.4 Power cable with extruded insulation and their accessories for rated voltages from 1kV(U=1.2kV) up to 30kV(U=36kV)-part 4: test requirements on accessories for cable with rated voltages from 6kV up to 30kV(U=36kV)
IEC 60099 Metal oxide surge arresters without gaps for a.c. systems
JB/T 8952 Polymer-housed metal oxide surge arresters without gaps for a.c. systems
Brief instruction for bushing interface according to EN50180&50181
Bushing Interface Interface Description Standard
250A Series Apparatus Bushing 250A Plug-in EN50180&50181 Interface type A
630A Series Apparatus Bushing 630A Bolted EN50180&50181 Interface type C
630A outside cone bolted-type bushing 630A Bolted EN50180&50181 Interface type E
