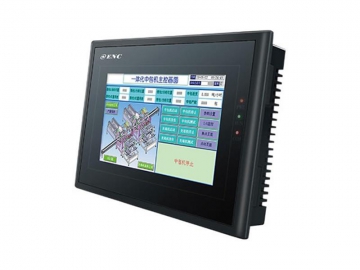

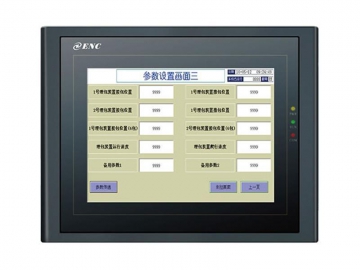

HMI Human Machine Interface
Specification
Model: HM-035AE, HM-043AE, HM-043BE, HM-043BS, HM-050AE, HM-050AS, HM-070AE, HM-070AS, HM-070BE, HM-070BS, HM-102AE, HM-102AS
Model explanation
HM stands for HM series
070 stands for dimensions
A/B stands for Encom-HMI self-possessed hole dimensions/HMI hole dimensions of other brands
E/S stands for standard model(USB port attached)/model with Ethernet(USB port attached)
| Display | Model | |
| Display dimensions | 4.3"(length width ratio: 16:9) | |
| Resolution(pixel) | 480x272 | |
| Touching pad | 4-wire high precision touching pad | |
| Display colors | 260,000 | |
| Backlight module | LED | |
| Contrast | 400:01:00 | |
| luminance (cd/m²) | 400cd/m² | |
| Characteristics/certificates | SD card | N/A |
| Memory | 128M FLASH+64M DDR | |
| CPU | 32-bit 400MHz RISC | |
| CC compatibility | Conforming to FCC, Class A | |
| Breakdown test | 1000V AC, 1 minute | |
| CE certificate | Conforming to EN55022 and EN55024 standards | |
| Protection grade | IP65(front panel) | |
| Cover material | Engineering plastics ABS+PC | |
| Power supply | External power | DC24V(+/-15%) |
| Interface | Power consumption | 3w |
| Serial ports | COM:RS232/422/485 | |
| SB downloading port | Yes Yes | |
| Disk port | Yes Yes | |
| Ethernet port | N/A Yes | |
| Environment | Environment temperature | -20~65℃ |
| Environment humidity | 10-90%RH | |
| Vibration | 10-25Hz(XYZ direction 2G/30 minutes) | |
| Construction | Appearance dimensions | 173X95X39(mm) |
| Hole dimensions | 163X85(mm) | |
| Net weight | 0.2kg |
Optional HMI accessories: USB communication cable, communication cable, installation retainer
1. USB communication cable is used to upload and download engineering files and to connect PC and HMI.
2. Communication cable achieves data transfer by connecting PLC and HMI. Cables can be designated according to PLC model used by the clients.
