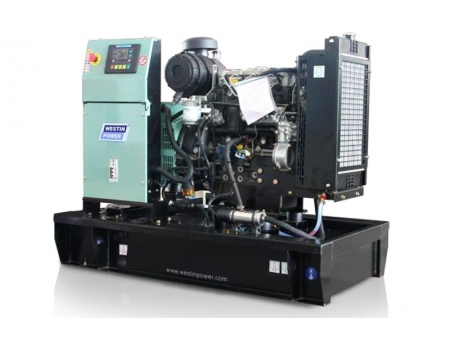

TP series diesel generator sets are powered by Perkins engines.

Power range 10kVA-2500kVA

  • Adopting Perkins engines, featuring prompt and reliable cold starting performance;
  • Designed with advanced technology, resulting in optimal combustion, low fuel consumption, less noise, as well as compliance with German TALuft emission standard;
  • Rational performance matching design leads to high stability and reliability of the power generation system;
  • The base fuel tank is integrated with the gas generator set, and built-in shock absorber is equipped for high-efficiency vibration reduction;
50Hz
Genset Model Standby Power Prime Power Engine Model Displacement (L) Fuel Consumption (L/h)
kVA kW kVA kW L*W*H (mm) L*W*H (mm)
TP10 10 8 9 7 403A-11G1/403D-11G 1.1 2.6 1402*715*1155 1856*826*1415
TP14 14 11 13 10 403D-15G 1.5 3.7 1402*715*1155 1856*826*1415
TP15 15 11 13 10 403A-15G1 1.5 3.7 1402*715*1155 1856*826*1415
TP22 22 18 20 16 404A-22G1/404D-22G 2.2 5.3 1402*715*1155 1856*826*1415
TP33 33 26 30 24 1103A-33G 3.3 7.2 1765*785*1256 2396*1056*1723
TP50 50 40 45 36 1103A-33TG1 3.3 7.2 1765*785*1256 2396*1056*1723
TP66 66 53 60 48 1103A-33TG2 3.3 14.6 1765*785*1256 2396*1056*1723
TP88 88 70 80 64 1104A-44TG2 4.4 18.7 1939*840*1309 3146*1056*1850
TP110 110 88 100 80 1104C-44TAG2 4.4 22.6 1939*840*1309 3146*1056*1850
TP150 150 120 135 108 1106A-70TG1 7 30.3 2481*1004*1534 3436*1106*1968
TP165 165 132 150 120 1106A-70TAG2 7 33.4 2481*1004*1534 3436*1106*1968
TP200 200 160 180 144 1106A-70TAG3 7 41.4 2481*1004*1534 3436*1106*1968
TP220 220 176 200 160 1106A-70TAG4 7 45.8 2481*1004*1534 3436*1106*1968
TP250 250 200 230 184 1206A-E70TTAG2 7.01 51 2830*1120*1660 3686*1256*2068
TP275 275 220 250 200 1206A-E70TTAG3 7.01 56.9 2830*1120*1660 3686*1256*2068
TP330 339 271 307 246 1706A-E93TAG1 9.29 69.6 2830*1125*1703 4366*1306*2250
TP340 337 270 308 246 1506A-E88TAG5 8.8 64.9 2923*1120*1703 4366*1306*2250
TP385 384 307 348 278 1706A-E93TAG2 9.29 78.4 2830*1125*1703 4786*1356*2537
TP400 400 320 350 280 2206C-E13TAG2 12.5 75 3230*1187*1988 4786*1356*2537
TP450 450 360 400 320 2206C-E13TAG3 12.5 85 3230*1187*1988 4786*1356*2537
TP500 500 400 450 360 2506C-E15TAG1 15 99 3460*1182*1987 5306*1566*2585
TP550 550 440 500 400 2506C-E15TAG2 15 106 3460*1182*1987 5306*1566*2585
TP660 650 520 591 473 2806C-E18TAG1A 18.1 129 3465*1548*1980 6058*2438*2591
TP700 700 560 650 520 2806A-E18TAG2 18.1 132 3505*1548*1980 6058*2438*2591
TP825 820 656 746 597 4006-23TAG2A 22.9 161 4318*1720*2230 6058*2438*2591
TP880 900 718 800 641 4006-23TAG3A 22.9 172 4318*1720*2230 6058*2438*2591
TP1000 1000 800 900 720 4008TAG1A 30.6 195 4699*2070*2269 6058*2438*2591
TP1100 1100 880 1000 800 4008TAG2 30.6 224 4699*2070*2269 6058*2438*2591
TP1375 1345 1076 1250 1000 4012-46TWG2A 45.8 258 4811*2010*2448 12192*2438*2896
TP1500 1500 1200 1350 1100 4012-46TWG3A 45.8 281 4811*2010*2448 12192*2438*2896
TP1650 1650 1320 1500 1200 4012-46TAG2A 45.8 310 4985*2240*2569 12192*2438*2896
TP1875 1873 1498 1710 1350 4012-46TAG3A 45.8 370 5070*2240*2569 12192*2438*2896
TP2000 2000 1600 1850 1480 4016TAG1A 61.1 383 5990*2160*2543 12192*2438*2896
TP2250 2250 1800 2000 1600 4016TAG2A 61.1 434 5990*2160*2543 12192*2438*2896
TP2500 2500 2000 2250 1800 4016-61TRG3 61.1 470 6010*2250*2783
60Hz (127 220V)
Genset Model Standby Power Prime Power Engine Model Displacement (L) Fuel Consumption (L/h)
kVA kW kVA kW L*W*H (mm) L*W*H (mm)
TP12 12 10 11 9 403D-11G 1.131 3.2 1402*715*1155 1856*826*1415
TP17 17 14 16 13 403D-15G 1.496 4.3 1402*715*1155 1856*826*1415
TP27 27 21 24 19 404D-22G 2.216 6.2 1402*715*1155 1856*826*1415
TP38 38 31 35 28 1103A-33G 3.3 8.6 1765*798*1256 2396*1056*1723
TP60 59 47 53 43 1103A-33TG1 3.3 12.9 1765*798*1256 2396*1056*1723
TP75 75 60 68 55 1103A-33TG2 3.3 16.6 1765*798*1256 2396*1056*1723
TP85 84 67 76 61 1104A-44TG1 4.41 17.8 1939*840*1309 3146*1126*1850
TP100 100 80 90 72 1104C-44TAG1 4.41 22 1939*860*1364 3146*1126*1850
TP125 127 101 114 92 1104C-44TAG2 4.41 26.9 1939*860*1364 3146*1126*1850
TP190 188 150 169 135 1106A-70TAG2 7.01 38.2 2481*1004*1534 3856*1256*2068
TP220 219 175 197 158 1106A-70TAG3 7.01 46.4 2481*1004*1534 3856*1256*2068
TP250 250 200 225 180 1206A-E70TTAG1 7.01 54.5 2650*1187*1775 3686*1256*2068
TP385 390 310 350 280 1506A-E88TAG5 8.8 77.1 2923*1187*1703 4556*1406*2250
TP400 400 320 364 290 1706A-E93TAG1 9.29 75.2
TP438 438 350 400 320 2206C-E13TAG2 12.5 84 3200*1225*1988 4786*1556*2537
TP500 500 400 438 350 2206A-E13TAG6 12.5 91
TP550 550 440 500 400 2506C-E15TAG1 15 100 3438*1190*1987 5306*1566*2585
TP625 625 500 569 455 2506C-E15TAG3 15.2 121 3438*1190*1987 5306*1566*2585
TP690 687 550 625 500 2806C-E18TAG1A 18.13 130 3352*1536*1957 6058*2438*2591
TP750 750 600 681 545 2806C-E18TAG3 18.13 145 3352*1536*1957 6058*2438*2591
TP825 825 660 750 600 4006-23TAG2A 22.921 176 4300*1720*2222 6058*2438*2591
TP940 931 745 844 675 4006-23TAG3A 22.921 200 4300*1720*2222 6058*2438*2591
TP975 975 780 884 707 4008TAG1 30.561 201 4565*2070*2269 6058*2438*2591
TP1100 1100 875 1000 800 4008TAG2 30.561 224 4565*2070*2269 6058*2438*2591
TP1375 1375 1100 1250 1000 4012-46TWG2A 45.842 266 4720*2006*2530 12192*2438*2896
TP1500 1463 1170 1338 1070 4012-46TWG3A 45.842 289 4780*2192*2501 12192*2438*2896
TP1650 1675 1330 1500 1200 4012-46TAG2A 45.842 315 5000*2200*2565 12192*2438*2896
TP1880 1880 1500 1700 1350 4012-46TAG3A 45.842 356 5000*2200*2565
60Hz (220 380V)
Genset Model Standby Power Prime Power Engine Model Displacement (L) Fuel Consumption (L/h)
kVA kW kVA kW L*W*H (mm) L*W*H (mm)
TP12 12 10 11 9 403D-11G 1.131 3.2 1320*700*1160 1856*826*1415
TP17 17 14 16 13 403D-15G 1.496 4.3 1320*700*1160 1856*826*1415
TP27 27 21 24 19 404D-22G 2.216 6.2 1320*700*1160 1856*826*1415
TP38 38 31 35 28 1103A-33G 3.3 8.6 1650*770*1254 2396*1056*1723
TP60 59 47 53 43 1103A-33TG1 3.3 12.9 1650*770*1254 2396*1056*1723
TP75 75 60 68 55 1103A-33TG2 3.3 16.6 1650*770*1256 2396*1056*1723
TP85 84 67 76 61 1104A-44TG1 4.41 17.8 2100*815*1310 3146*1056*1850
TP100 100 80 90 72 1104C-44TAG1 4.41 22 2100*815*1310 3146*1056*1850
TP125 127 101 114 92 1104C-44TAG2 4.41 26.9 2100*815*1310 3146*1056*1850
TP190 188 150 169 135 1106A-70TAG2 7.01 38.2 2550*950*1608 3686*1256*2068
TP220 213 170 197 158 1106A-70TAG3 7.01 46.4 2550*950*1608 3686*1256*2068
TP250 250 200 225 180 1206A-E70TTAG1 7.01 54.5 2650*1187*1775 3686*1256*2068
TP385 385 308 350 280 1506A-E88TAG5 8.8 77.1 3150*1150*1800 4556*1406*2250
TP400 400 320 364 290 1706A-E93TAG1 9.29 75.2
TP438 438 350 400 320 2206C-E13TAG2 12.5 84 3200*1150*2000 4786*1556*2537
TP500 500 400 438 350 2206A-E13TAG6 12.5 91
TP550 550 440 500 400 2506C-E15TAG1 15 100 3440*1150*1990 5306*1566*2585
TP625 625 500 569 455 2506C-E15TAG3 15.2 121 3440*1150*1990 5306*1566*2585
TP690 673 538 625 500 2806C-E18TAG1A 18.13 130 3440*1540*1960 6058*2438*2591
TP750 730 584 675 540 2806C-E18TAG3 18.13 145 3440*1540*1960 6058*2438*2591
TP825 825 660 750 600 4006-23TAG2A 22.921 176 4235*1720*2220 6058*2438*2591
TP940 944 755 850 680 4006-23TAG3A 22.921 200 4300*1720*2220 6058*2438*2591
TP960 950 760 875 700 4008TAG1 30.561 201 4565*2070*2400 6058*2438*2591
TP1100 1080 864 1000 800 4008TAG2 30.561 224 4565*2070*2400 6058*2438*2591
TP1375 1350 1080 1250 1000 4012-46TWG2A 45.842 266 4720*2006*2530 12192*2438*2896
TP1500 1500 1200 1350 1100 4012-46TWG3A 45.842 289 4720*2006*2530 12192*2438*2896
TP1650 1670 1330 1500 1200 4012-46TAG2A 45.842 315 5000*2200*2565 12192*2438*2896
TP1880 1880 1500 1700 1350 4012-46TAG3A 45.842 356 5000*2200*2565 12192*2438*2896
