Diesel Generator Sets with MTU Engines, TX Series

Diesel Generator Sets with MTU Engines, TX Series
Diesel Generator Sets with MTU Engines, TX Series
Diesel Generator Sets with MTU Engines, TX Series
Request a Quote
About Us: http://power-gensets.com/3-1-4-mtu-diesel-engine-series.html

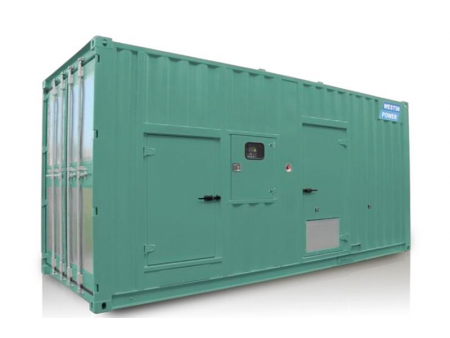

TX series diesel generator sets are powered by MTU engines.

Power range 710kVA-3300kVA

  • Adopting German MTU diesel engines;
  • Able to run at extremely high altitudes of up to 3000 meters, without power loss;
  • High pressure common rail system, electronically controlled fuel injection system with sophisticated supercharger and cooling technologies, delivering outstanding fuel efficiency while complying with emissions targets;
50Hz
Genset Model Standby Power Prime Power Engine Model Displacement (L) Fuel Consumption (L/h)
kVA kW kVA kW L*W*H (mm) L*W*H (mm)
TX710 715 572 650 520 12V2000G25 23.88 156 4000*1585*2265 5306*1706*3015
TX850 858 686 780 624 12V2000G65 23.88 185 4000*1585*2265 5306*1706*3015
TX1000 1001 801 910 728 16V2000G25 31.84 212.5 4350*1650*2253 6058*2438*2591
TX1100 1100 880 1000 800 16V2000G65 31.84 235.9 4430*1682*2285 6058*2438*2591
TX1250 1230 984 1135 908 18V2000G65 35.82 266.3 4750*2015*2340 12192*2438*2896
TX1375 1345 1076 1250 1000 18V2000G26F 40.2 275.9 4845*2015*2350 12192*2438*2896
TX1500 1500 1200 1365 1092 12V4000G14RF 57.2 306.5 5750*2275*2600
TX1800 1760 1408 1600 1280 12V4000G14F 57.2 355.6 5750*2275*2600
TX2000 1980 1584 1800 1440 12V4000G24F 57.2 400.8 5870*2300*2702
TX2250 2250 1800 2080 1664 16V4000G14F 76.3 448 5870*2300*2705
TX2475 2400 1920 2250 1800 16V4000G24F 76.3 492.3 5870*2300*2705
TX2750 2680 2144 2500 2000 20V4000G14F 95.4 559.8 6535*2575*3035
TX3000 3070 2456 2790 2232 20V4000G24F 95.4 609.4 6535*2575*3035
TX3300 3300 2640 3000 2400 20V4000G34F 95.4 659 6535*2575*3035
60Hz (127 220V)
Genset Model Standby Power Prime Power Engine Model Displacement (L) Fuel Consumption (L/h)
kVA kW kVA kW L*W*H (mm) L*W*H (mm)
TX880 869 695 794 635 12V2000G45 23.88 198.5 4050*1585*2150 6058*2438*2591
TX1000 1000 800 919 735 12V2000G85 23.88 224.4 4050*1585*2150 6058*2438*2591
TX1150 1141 913 1038 830 16V2000G45 31.84 249.9 4475*1650*2300 6058*2438*2591
TX1250 1272 1018 1156 925 16V2000G85 31.84 275.1 4475*1650*2300 6058*2438*2591
TX1500 1513 1210 1375 1100 18V2000G85 35.82 320.4 4650*1900*2500 12192*2438*2896
60Hz (220 380V)
Genset Model Standby Power Prime Power Engine Model Displacement (L) Fuel Consumption (L/h)
kVA kW kVA kW L*W*H (mm) L*W*H (mm)
TX880 880 704 800 640 12V2000G45 23.88 198.5 4050*1585*2150 6058*2438*2591
TX1000 1011 809 919 735 12V2000G85 23.88 224.4 4050*1585*2150 6058*2438*2591
TX1150 1141 913 1038 830 16V2000G45 31.84 249.9 4475*1650*2300 6058*2438*2591
TX1250 1272 1018 1156 925 16V2000G85 31.84 275.1 4475*1650*2300 6058*2438*2591
TX1500 1500 1200 1375 1100 18V2000G85 35.82 320.4 4650*1900*2500 12192*2438*2896
TX1900 1895 1516 1750 1400 12V4000G14S 57.2 396.8 6350*2250*2500 12192*2438*2896
TX2200 2200 1760 2000 1600 12V4000G24S 57.2 417.9 6350*2250*2500 12192*2438*2896
TX2500 2544 2035 2313 1850 16V4000G14S 76.3 483.8 6870*2740*2650
