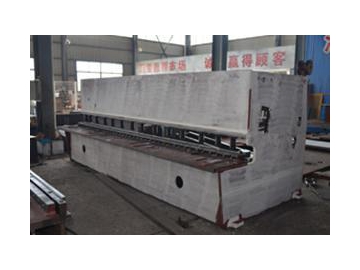

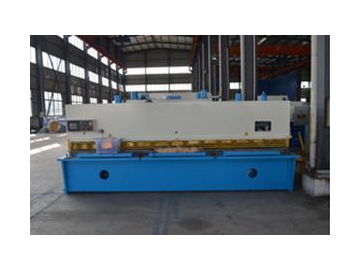

SBSH Series Hydraulic Swing Beam Shear

SBSH Series Hydraulic Swing Beam Shear
SBSH Series Hydraulic Swing Beam Shear
SBSH Series Hydraulic Swing Beam Shear
SBSH Series Hydraulic Swing Beam Shear
Request a Quote
Characteristics
  • This sheet metal shearing machine utilizes a steel sheet welded structure frame, hydraulic transmission and nitrogen return. Each of these gives the machine its high performance and attractive appearance.
  • There is an indicator to guide users in convenient, fast adjustment of the blade gap.
  • There is a lighting device used to illuminate the sheet metal, thus facilitating shearing precision.
  • The work area uses a protective fence for safe operation.
  • There is a display device that displays the back gauge and shearing time.
  • This shearing machine is suitable for sheet metal with a thickness of 1-10mm, a width of 2500mm, and a strength of 500N/mm2. Often, when the sheet is stronger, the thickness is smaller.
  • This sheet metal shearing machine uses a steel sheet welded structure frame, hydraulic drive, and return stroke cylinder. It features a small volume, light weight, high rigidity and low noise.
  • This sheet metal shearing machine has an encoder for the back gauge, which cooperates with a digital display system in order to improve the display precision and shearing precision.
  • Blade adjustment is fast and convenient, with the upper blade holder capable of adjusting with pole free speed regulation. The front gauge can count and artificially measure direction, as well as draw overlapping lines, which is convenient for later shearing.

Application
SBSH series sheet metal shearing machines are capable of shearing sheet metal in varying thickness levels. They can be divided into three types: level shearing, rolling shearing and vibratory shearing. Level shearing has a broader use than the other two. A mechanical transmission is used when the sheet metal thickness is less than 10mm, with hydraulic transmission used when the sheet thickness is higher than 10mm. Typically, a foot pedal or button are used for single or continuous shearing.

Technical Specifications
Model Max. shearing thickness (mm) Max. shearing width (mm) Shear angle (°) Number of stroke (/min) Backguage range (mm) Main motor power (kw)
SBSH-4X2500 4 2500 1"30' 20 20-600 4
SBSH-4X3200 4 3200 1"30' 18 20-600 5.5
SBSH-4X4000 4 4000 1"30' 18 20-600 7.5
Model Max. shearing thickness (mm) Max. shearing width (mm) Shear angle (°) Number of stroke (/min) Backguage range (mm) Main motor power (kw)
SBSH-6X2500 6 2500 1"30' 18 20-600 7.5
SBSH-6X3200 6 3200 1"30' 14 20-600 7.5
SBSH-6X4000 6 4000 1"30' 14 20-600 7.5
SBSH-6X5000 6 5000 1"30' 10 20-800 11
SBSH-6X6000 6 6000 1"30' 10 20-800 11
Model Max. shearing thickness (mm) Max. shearing width (mm) Shear angle (°) Number of stroke (/min) Backguage range (mm) Main motor power (kw)
SBSH-10X2500 10 2500 1"30' 14 20-800 11
SBSH-10X3200 10 3200 1"30' 12 20-800 11
SBSH-10X4000 10 4000 1"30' 12 20-800 11
SBSH-10X6000 10 6000 2" 10 20-800 15
Model Max. shearing thickness (mm) Max. shearing width (mm) Shear angle (°) Number of stroke (/min) Backguage range (mm) Main motor power (kw)
SBSH-12X2500 12 2500 1"30' 16 20-800 18.5
SBSH-12X3200 12 3200 1"30' 14 20-800 18.5
SBSH-12X4000 12 4000 1"30' 14 20-800 18.5
SBSH-12X5000 12 5000 1"30' 7 20-800 30
SBSH-12X6000 12 6000 2" 6 20-1000 37
SBSH-12X8000 12 8000 2"30' 5 20-1000 37
Model Max. shearing thickness (mm) Max. shearing width (mm) Shear angle (°) Number of stroke (/min) Backguage range (mm) Main motor power (kw)
SBSH-20X2500 20 2500 2"30' 5 20-1000 30
SBSH-20X3200 20 3200 2"30' 4 20-1000 30
SBSH-20X4000 20 4000 2"30' 3 20-1000 37
