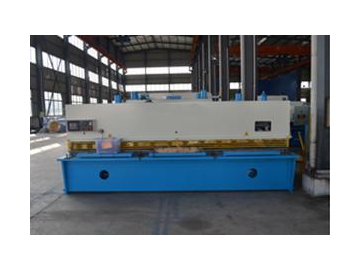

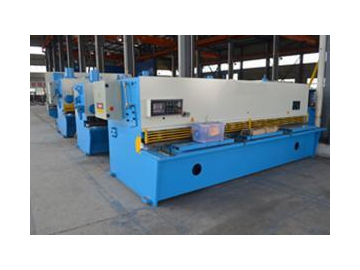

Characteristics

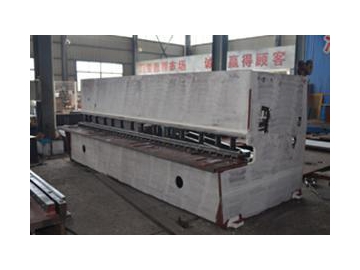

  • This sheet metal shearing machine uses a steel sheet welded structure frame, and a comprehensive treatment of vibration and heat treatment to relieve internal stress, thus ensuring the machine has an excellent rigidity and stability.
  • It uses an advanced and integrated hydraulic system in order to ensure the machine has an outstanding reliability.
  • The shearing machine uses a 3 point supporting rolling guideway in order to eliminate the bearing clearance, and improve the shearing precision.
  • The blade gap can be adjusted using a hand wheel, making adjustment fast, precise and convenient.
  • The cutting edge of the 4 sided rectangular blade gives the blade a long service life.
  • The distortion levels of the sheet metal are reduced simply by adjusting the shear angle.
  • The upper blade holder has an inward tiling structure in order to facilitate material feed in, as well as improve the workpiece accuracy.
  • The equipped pneumatic protection device protects the sheet metal when shearing.
  • This shearing machine features a sub-shear function and an alignment device with lighting.
  • Pneumatic front protect guard

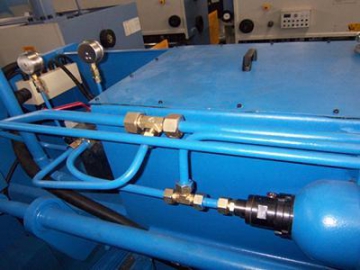

  • Hydraulic EBM Germany piping system

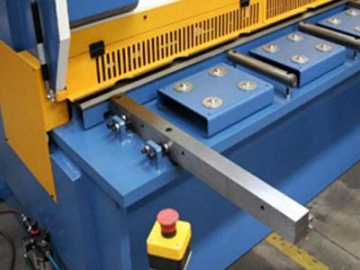

  • Blade clearance adjustment

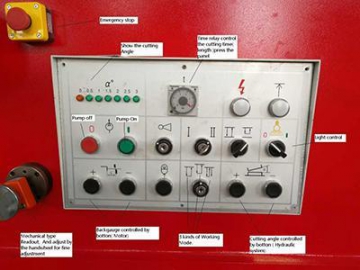

  • Operation panel

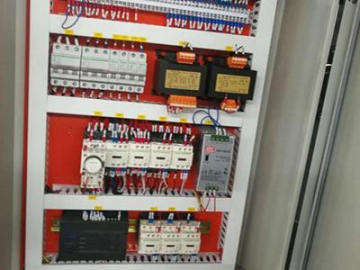

  • Electric cabinet

Application
This sheet metal shearing machine is used to shear the workblanks of sheet metal.

Technical Specifications
Model Max. shearing thickness (mm) Max. shearing width (mm) Number of stroke (/min) Backguage range (mm) Shear angle (°) Throat Depth (mm) Main motor power (kw) Weight (kg) Dimension
VSHS-6X2500 6 2500 10~40 750 0.5~2.5 70 7.5 5150 3240×1770×2010
VSHS-6X3100 6 3100 8~35 750 0.5~2.5 70 7.5 5800 3790×1800×2100
VSHS-6X4000 6 4000 7~30 750 0.5~2.5 70 7.5 7100 4740×1805×2110
VSHS-6X6000 6 6000 5~30 1000 0.5~2.5 100 15 21000 6800×2350×2790
VSHS-8X2500 8 2500 10~40 750 0.5~2.5 70 11 5500 3240×1770×2010
VSHS-8X3100 8 3100 8~36 750 0.5~2.5 70 11 6100 3800×1800×2060
VSHS-8X4000 8 4000 7~30 750 0.5~2.5 70 11 7400 4750×1805×2140
VSHS-8X6000 8 6000 5~30 1000 0.5~2.5 100 22 22000 6900×2350×2800
VSHS-10X2500 10 2500 10~35 750 0.5~2.5 100 11 6700 3310×1850×2160
VSHS-10X3100 10 3100 8~35 750 0.5~2.5 100 11 7400 3860×1870×2170
VSHS-10X4000 10 4000 6~35 750 0.5~2.5 100 15 9200 4810×1920×2350
VSHS-12X2500 12 2500 10~35 1000 0.5~2.5 100 15 7200 3310×2180×2270
VSHS-12X3100 12 3100 8~35 1000 0.5~2.5 100 15 9000 3860×2200×2325
VSHS-12X4000 12 4000 6~35 1000 0.5~2.5 100 30 11600 4810V2200×2335
VSHS-12X6000 12 6000 5~12 1000 0.5~2.5 100 30 32000 6950×2350×3100
VSHS-14X6000 14 6000 5~12 1000 0.5~2.5 100 30 34000 7000×2350×3100
VSHS-16X2500 16 2500 8~30 1000 0.5~2.5 100 30 9600 3350×2190×2350
VSHS-16X3100 16 3100 7~30 1000 0.5~2.5 100 30 11500 3900×2190×2430
VSHS-16X4000 16 4000 6~30 1000 0.5~3.0 100 30 15100 4850×2340×2575
VSHS-16X6000 16 6000 4~12 1000 0.5~2.5 100 37 36000 7000×2400×3100
VSHS-20X2500 20 2500 8~30 1000 0.5~3.0 100 30 14000 3385×2235×2665
VSHS-20X3100 20 3100 7~30 1000 0.5~3.0 100 30 17200 3935×2285×3030
VSHS-20X4000 20 4000 6~30 1000 0.5~3.0 100 30 21200 4935×2330×3045
VSHS-20X6000 20 6000 3~10 1000 0.5~2.5 100 55 55000 7050×2600×3544
VSHS-25X2500 25 2500 5~30 1000 0.5~3.0 100 37 19000 3680×2200×3130
VSHS-25X3100 25 3100 4~30 1000 0.5~3.0 100 37 23500 3970×2370×3160
VSHS-25X4000 25 4000 3~30 1000 0.5~3.0 100 37 33000 5000×2370×3380
