Features
  • This metal cutting shear features a welded-steel structure with a simple design. It is outfitted with a digital CNC controller with a high precision to control the shearing process.
  • With hydraulic transmission and accumulator return function, this cutting shear features an easy operation and excellent reliability.
  • The blade gap adjustment device contains a sign indication for quick and easy setting.
  • With a shadow cut line and shear stroke controlling system, the bending adjustment is fast and easy.
  • The work table is equipped with a ball screw to reduce sheet scratches and friction resistance.
Technical Parameters
Model Cutting thickness Cutting width Shear angle Shear strength Back gauge range Strokes Motor power Overall dimensions
(mm) (mm) ° (n/mm2 ) (mm) /min (kw) LXWXH (nun)
QC12Y-4X2500 4 2500 1°30′ 450 20-600 16 5.5 3000X1450X1750
QC12Y-4X3200 4 3200 1°30′ 450 20-600 13 5.5 3700X1550X1850
QC12Y-4X4000 4 4000 1°30′ 450 20-600 10 5.5 4500X1550X1850
QC12Y-4X6000 4 6000 1°30′ 450 20-600 5 7.5 6400X2000X1900
QC12Y-6X2500 6 2500 1°30′ 450 20-600 15 7.5 3000X1550X1850
QC12Y-6X3200 6 3200 1°30′ 450 20-600 12 7.5 3700X1650X1850
QC12Y-6X4000 6 4000 1°30′ 450 20-600 9 7.5 4500X1650X1850
QC12Y-6X6000 6 6000 1°30′ 450 20-600 5 11 6400X2100X1900
QC12Y-8X2500 8 2500 1°45′ 450 20-600 11 11 3000X1600X1850
QC12Y-8X3200 8 3200 1°45′ 450 20-600 8 11 3700X1700X1900
QC12Y-8X4000 8 4000 1°45′ 450 20-600 8 11 4500X1700X1900
QC12Y-8Xe000 8 6000 1°45′ 450 20-600 8 11 6400X2200X2100
QC12Y-10X2500 10 2500 1°45′ 450 20-600 10 11 3000X1600X1850
QC12Y-10X3200 10 3200 1°45′ 450 20-600 10 11 3700X1700X1900
QC12Y-10X4000 10 4000 1°45′ 450 20-600 10 11 4500X1700X1900
QC12Y-10X6000 10 6000 1°45′ 450 20-600 10 15 6400X2200X2100
Optional Control System
MD11-1 control system
  • Easy operation and low cost
  • 10-step program
  • Manual changing and adjustment of the plates
  • Retract function
  • Parameter setting and modification

E21S control system
  • Back gauge control system
  • Automatic positioning
  • Dual programmable digital output
  • 40 programs stored, 25 steps per program
  • Back gauge retract function
  • One-click backup and restoration
  • mm/inch, English operation interface
Standard Configurations

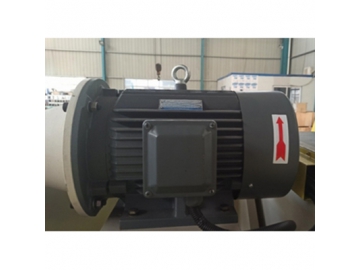

  • Main motor from Siemens

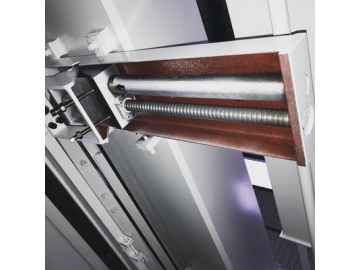

  • Ball screw and linear rail from Taiwan HIWIN
  • Electrical system from French SCHNEIDER

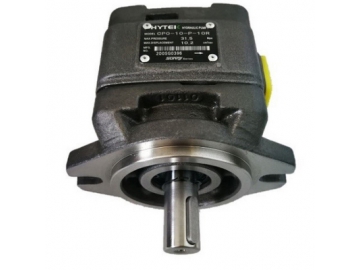

  • Oil pump from Sunny

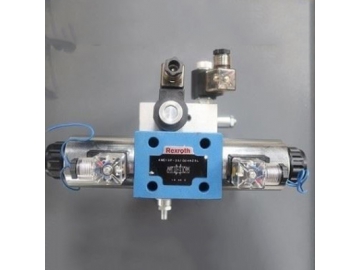

  • Manifold valve from REXROTH
  • Tube fittings and tube adapters

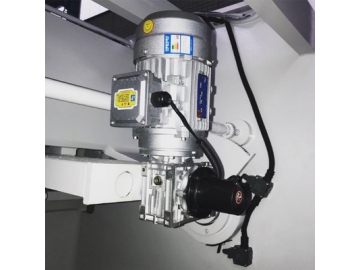

  • Motor

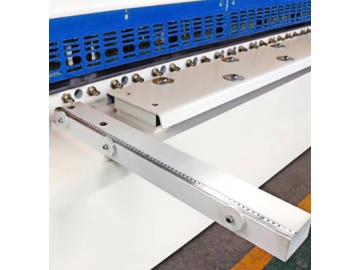

  • Front arms

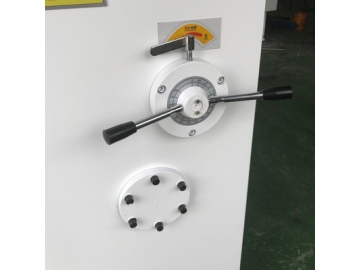

  • Manual blade gap adjustment
Optional
  • Light curtain protection
  • Rear supporting material positioning platform
