Q11 Series Mechanical Shear, Sheet Metal Shearing
Request a Quote
This mechanical shear features a steel welding structure, which features a simple design, easy operation and low consumption. It is designed to cut metal sheets with a thickness of 1.5mm. This sheet metal shearing machine is widely used in metallurgy, light industry, machinery, hardware, motors, electrical appliances, automobile maintenance and other metal sheet processing industries.
Technical Parameters
| Model | Cutting thickness | Cutting width | Shear angle | Strokes | Back gauge range | Motor power | Overall dimension |
| (mm) | (mm) | (°） | （times/min） | (mm) | （kw） | （mm*mm*mm） | |
| Q11-1.5*1000 | 1.5 | 1000 | 1°30' | 28 | 350 | 3 | 1500*680*1000 |
| Q11-1.5*1300 | 1.5 | 1300 | 1°30' | 28 | 350 | 3 | 1800*680*1000 |
| Q11-1.5*1600 | 1.5 | 1600 | 1°30' | 28 | 350 | 3 | 2000*680*1000 |
| Q11-1.5*2000 | 1.5 | 2000 | 1°30' | 28 | 350 | 3 | 2500*680*1000 |
| Q11-1.2*2500 | 1.2 | 2500 | 1°30' | 28 | 350 | 3 | 3100*680*1000 |
| Q11-2*1000 | 2 | 1000 | 1°30' | 28 | 400 | 3 | 1500*900*1100 |
| Q11-2*1300 | 2 | 1300 | 1°30' | 28 | 400 | 3 | 1800*900*1100 |
| Q11-2*1500 | 2 | 1500 | 1°30' | 28 | 400 | 3 | 2000*900*1100 |
| Q11-2*2000 | 2 | 2000 | 1°30' | 28 | 400 | 3 | 2500*900*1100 |
| Q11-2*2500 | 2 | 2500 | 1°30' | 28 | 400 | 3 | 3100*900*1100 |
| Q11-3*1300 | 3 | 1300 | 2°14‘ | 33 | 500 | 4.5 | 1900*1100*1200 |
| Q11-3*1500 | 3 | 1500 | 2°14‘ | 33 | 500 | 4.5 | 2100*1100*1200 |
| Q11-3*1600 | 3 | 1600 | 2°14‘ | 33 | 500 | 4.5 | 2200*1100*1200 |
| Q11-3*2000 | 3 | 2000 | 2°14‘ | 33 | 500 | 4.5 | 2600*1100*1200 |
| Q11-3*2500 | 3 | 2500 | 2°14‘ | 33 | 500 | 4.5 | 3100*1100*1200 |
| Q11-4*1300 | 4 | 1300 | 2°14‘ | 33 | 500 | 4.5 | 1900*1100*1200 |
| Q11-4*1600 | 4 | 1600 | 2°14‘ | 33 | 500 | 4.5 | 2200*1100*1200 |
| Q11-4*2000 | 4 | 1000 | 2°14‘ | 33 | 500 | 4.5 | 2600*1100*1200 |

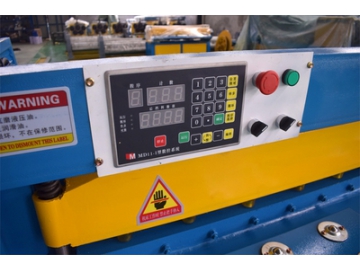

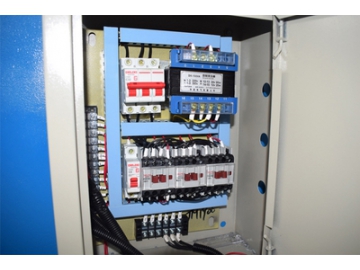

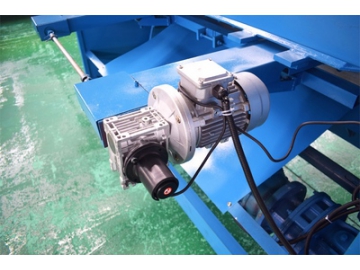

Machine View
