Sheet Metal Bending, Manual Metal Bending Machine

This series of manual metal bending machine includes both heavy and light duty types, making it ideal for use on construction sites, ventilation duct manufacturing, and processing of metal white iron box pieces. This machine is popular with customers from at home and abroad, thanks to its light weight, low consumption, and high efficiency.

Technical Parameters
Model Min. bending angle (°) Weight(kg) Bending thickness (mm) Bending width (mm) Dimensions (mm×mm×mm)
WS-1.5×1000 60 330 0.3~1.5 1000 1680×800×1200
WS-1.5×1300 60 360 0.3~1.5 1300 1980×800×1200
WS-1.5×1500 60 380 0.3~1.5 1500 2180×800×1200
WS-1.5×2000 60 440 0.3~1.5 2000 2680×800×1200
WS-1.5×2500 60 560 0.3~1.5 2500 3180×800×1200
WS-1.2×3000 60 680 0.3~1.2 3000 3680×800×1200

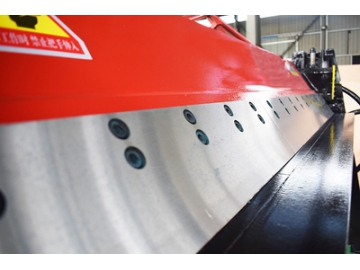

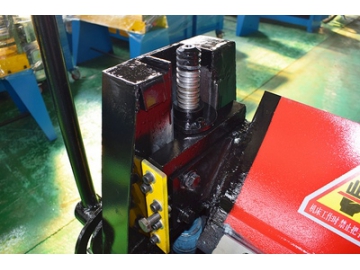

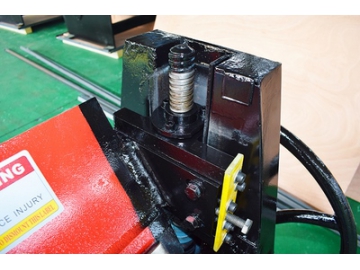

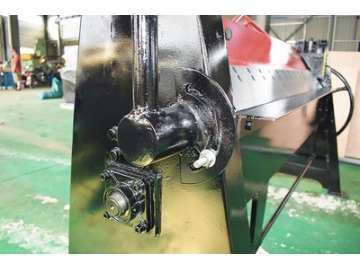

Machine View
