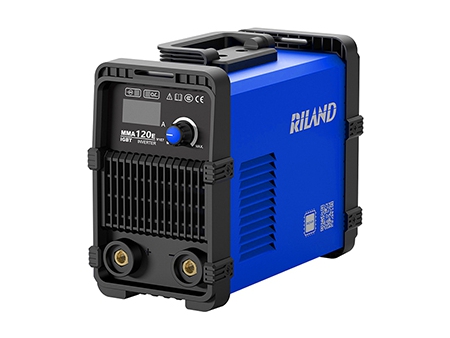

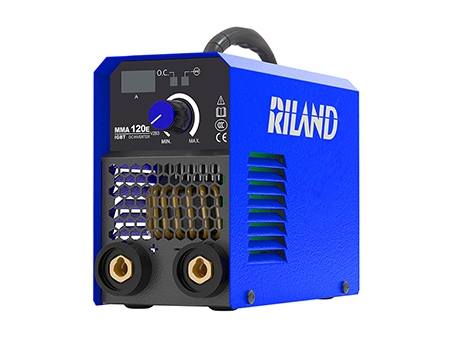

MMA 120E (110V)

Features
  • Equipped with RILAND’s self-developed RICHI chip and use the latest high grade IGBT technology;
  • Wide range input voltage: 110V±15%;
  • With digital display screen to visually display welding current;
  • Intelligent protection for over-loading and over-heating;
  • Anti-stick function built-in, preventing against over loading the unit and easing removal of the electrode;
  • Fan as needed, reduces noise and dust inside the machine;
  • Non-stop welding for 2.5mm electrode, can welding 3.2mm diameter electrode;
  • Compact and portable (2kg) with adjustable shoulder strap;
  • Suitable for power tools, maintenance, installation, etc. requirements;

Specifications
Model MMA 120E
Design standards IEC/EN60974-1
Power voltage (V) 1 Phase 110V±15%
Frequency (Hz) 50/60
Rated maximum supply current (I1max /A) 29.9
Maximum effective supply current (I1eff /A) 14.9
Welding current range (A) 30-100
Rated output current range (V) 30-85
Rated output voltage range (V) 21.2-23.4
Duty cycle (40℃) 85A/25%
Duty cycle (25℃) 85A/40%
65A/100%
No-load voltage (V) 58
Power factor 0.73
Efficiency (%) 80%
Insulation class F
Housing protection grade IP21
Weight (kg) 2.4
Overall dimension (L×W×H) (mm) 264×126×205

Package Included

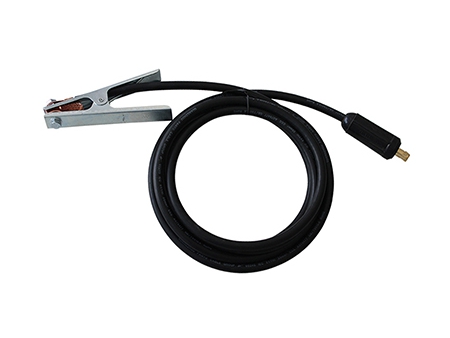

  • Earth clamp

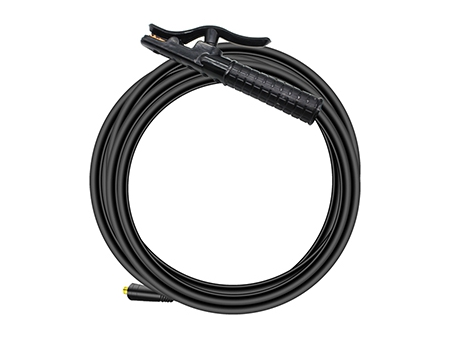

  • 1 set electrode holder

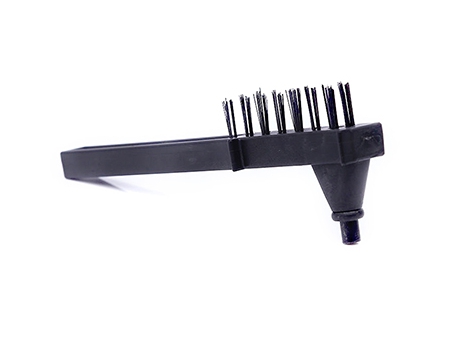

  • Steel brush hammer

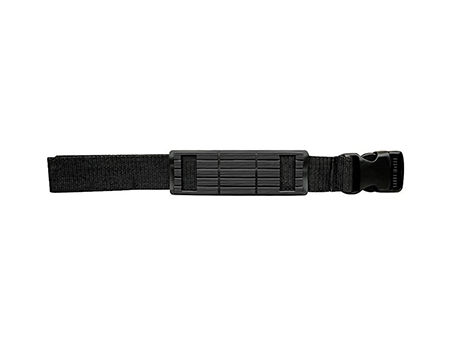

  • Shoulder strap

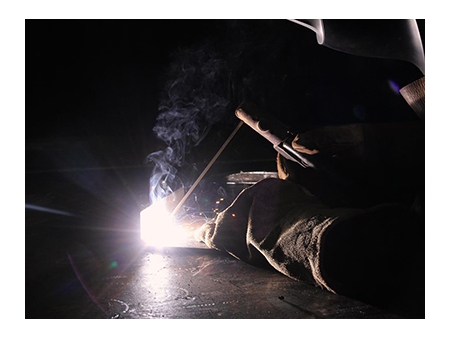

Applications
