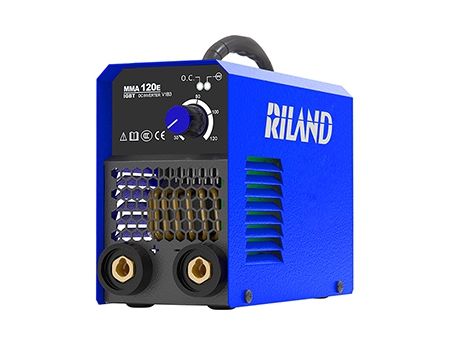

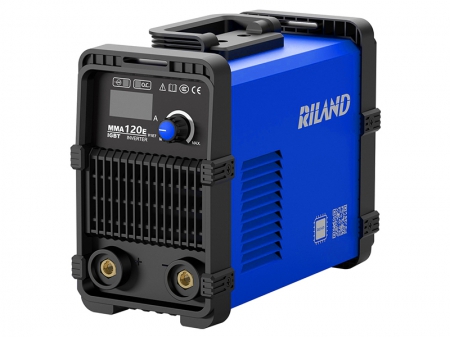

MMA 120E (220V)

Features
  • Equipped with RILAND’s self-developed RICHI chip and use the latest high grade IGBT technology;
  • Wide range input voltage: 220V±15%;
  • Intelligent protection for over-loading and over-heating;
  • Anti-stick function built-in, preventing against over loading the unit and easing removal of the electrode;
  • Fan as needed, reduces noise and dust inside the machine;
  • Non-stop welding for 2.5mm electrode, can welding 3.2mm diameter electrode;
  • Compact and portable (2kg) with adjustable shoulder strap;
  • Suitable for power tools, maintenance, installation, etc. ;

Specifications
Model MMA 120E
Design standards IEC/EN60974-6
Power voltage (V) 1 phase 220V±15%
Frequency (Hz) 50/60
Rated maximum supply current (I1max /A) 26.5
Maximum effective supply current (I1eff /A) 10.3
Output current range (A) 30-120
Output voltage range (V) 21.2-24.8
Duty cycle (25℃) 120A/60%
100A/100%
No-load voltage (V) 54
Power factor 0.71
Efficiency (%) 85%
Insulation class F
Housing protection grade IP21
Weight (kg) 2
Overall dimension (L×W×H) (mm) 204×87×146

Package Included

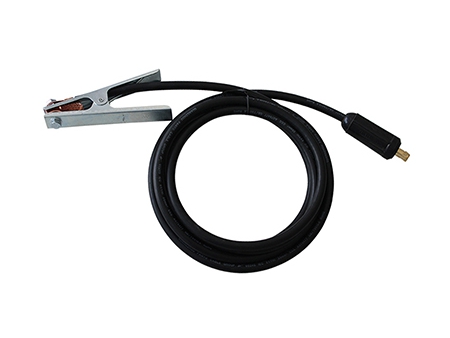

  • Earth clamp

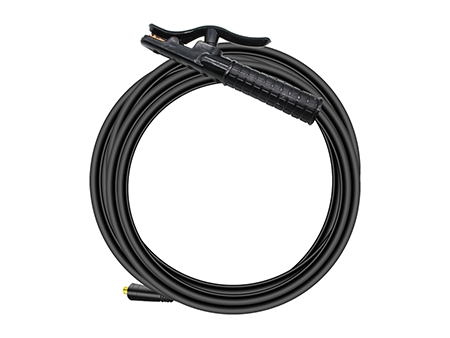

  • 1 set electrode holder

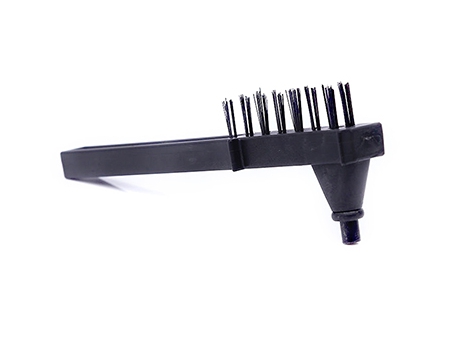

  • Steel brush hammer

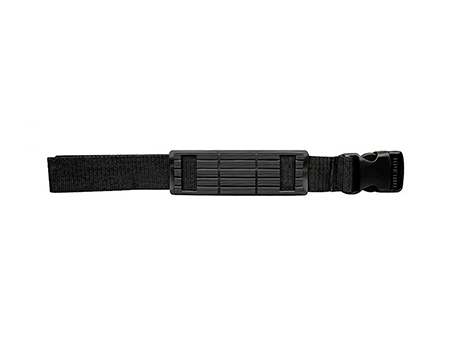

  • Shoulder strap

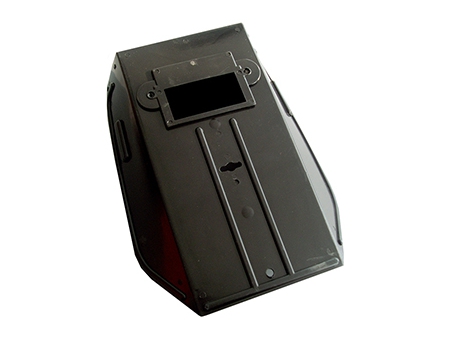

  • Optional Welding Accessories

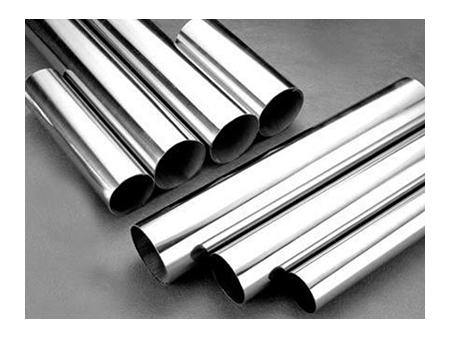

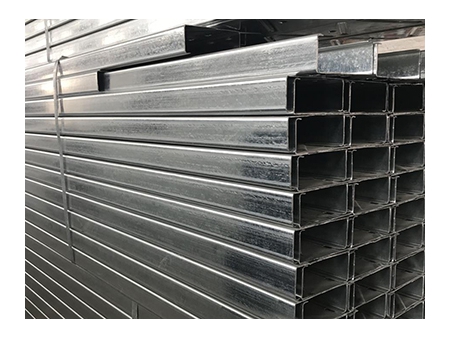

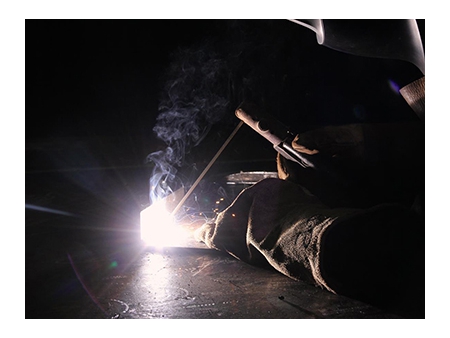

Applications
