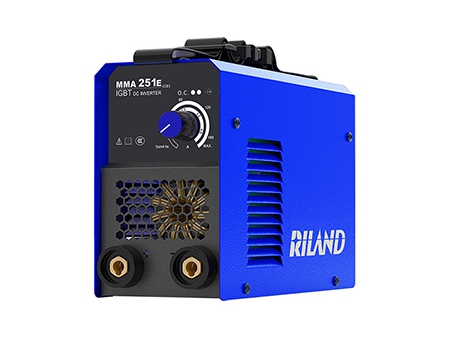

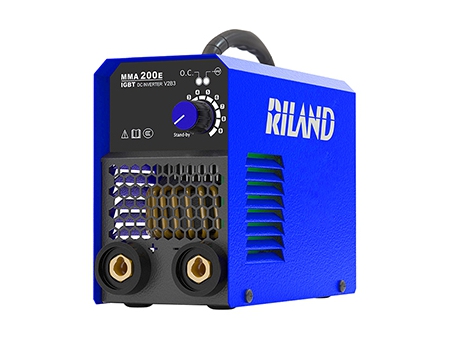

MMA 200E/251E

<
Features
  • Equipped with RILAND’s self-developed RICHI chip and use the latest high grade IGBT technology.
  • Suitable for working with Ø2.5/3.2mm stick electrodes;
  • Integrated design of power switch and adjustment knob;
  • Adaptable to a broad range of mains voltage;
  • Automatic air cooling;
  • High cost effectiveness;

Specifications
Model MMA 200E MMA 251E
Input voltage (V) 1PH 220V (±15%) 1PH 220V (±15%)
Frequency 50/60Hz 50/60Hz
Rated input current (A) 26.5 32
No-load voltage (V) 54 55
Duty cycle (40℃) 15% 20%
Output current range (A) 30-140 35-160
Output voltage range (V) 21.2-25.6 21.4-26.4
Efficiency 85% 85%
Power factor 0.71 0.65
Protection grade IP21 IP21
Insulation class Class F Class F
Anti-shock protection Class I Class I
Electromagnetic Compatibility (EMC) A A
Cooling method Forced air cooling Forced air cooling
Net weight (kg) 2 2.5
Dimensions (L×W×H) (mm) 204×87×146 255×100×176

Package Included

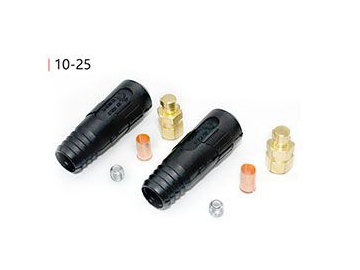

  • Welding cable quick connector, 2pcs

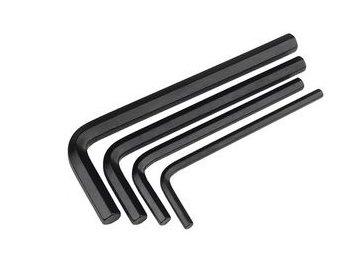

  • Allen key, 1pc
  • Shoulder strap

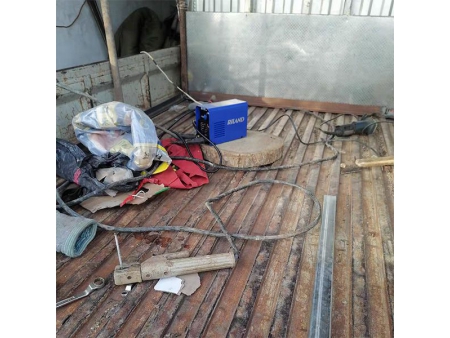

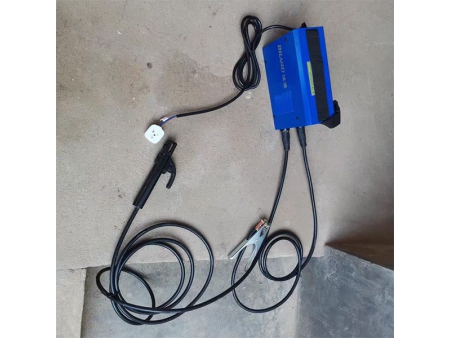

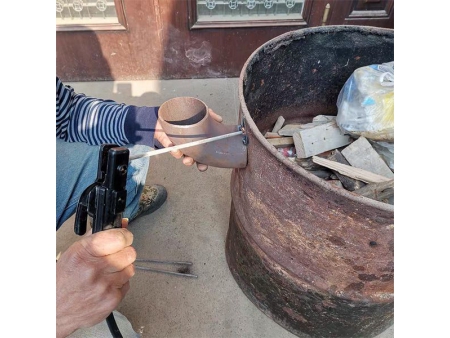

Applications

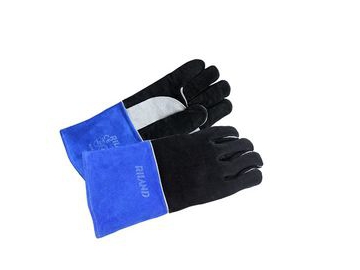

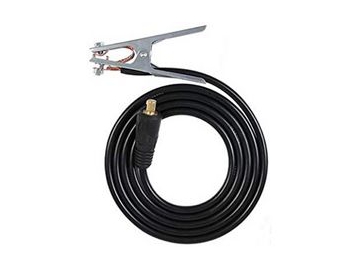

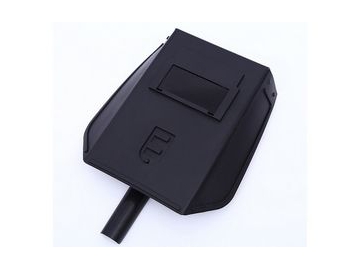

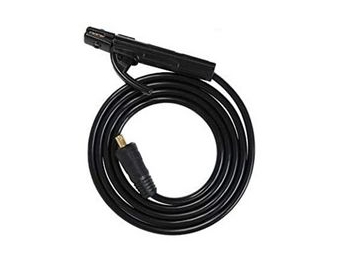

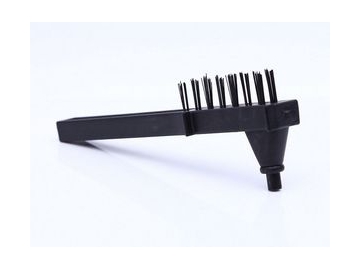

Optional Welding Accessories
