Magnetic Pipe Flame Cutting and Beveling Machine

Magnetic Pipe Flame Cutting and Beveling Machine
Magnetic Pipe Flame Cutting and Beveling Machine
Magnetic Pipe Flame Cutting and Beveling Machine
Request a Quote
About Us: http://pipemachinechina.com/3-7-pipe-flame-cutting-beveling.html

Model: MPFBM-40A

Technical Parameters
  • Applicable Diameters: ≥DN100(φ114)
  • Applicable Wall Thickness: 5-50 mm
  • Applicable Materials: Carbon steel, alloy steel, and cryogenic steel
  • Bevel Shape: V
  • Cutting Direction: Lengthwise
  • Cutting Speed: 50-750 mm/min
  • Magnet Suction: 50kg min
  • Cutting Accuracy: 0.5mm(Ф114-426mm)

Applications

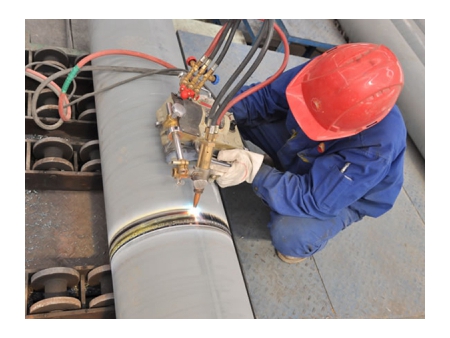

The magnetic pipe flame cutting and beveling machine uses a persistent magnet wheel which is absorbed on steel pipe to climb and cut horizontally, vertically or face-upwardly.

Features
  • On-line performance: not designed for flow-line production.
  • The magnetic pipe flame cutting and beveling machine has a beveling speed of ≤5Min/pipe bevel (DN200, carbon steel pipe with standard wall thickness).
  • It has bevel cutting of: cutting pipe and one bevel simultaneously.
  • It offers a good bevel quality.
