Blast Wheel Blades / Vanes

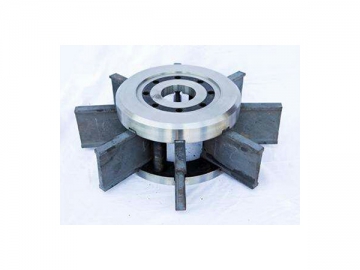

Blast Wheel Structure

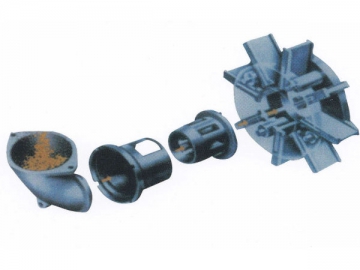

- Blast Wheel Diagram

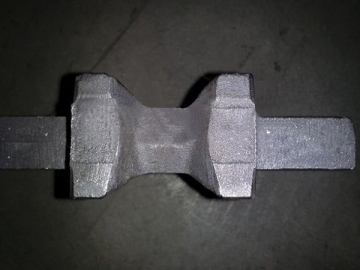

- Blast Wheel Blade Structure
Name: Blast Wheel Blades, Blast Wheel Vanes
Materials: High chromium alloy cast iron, high manganese alloy steel
Applicable machine: Shot blasting machine
Customizable or not: Yes
Part model: Based on customers needs
Order quantity: Based on customers needs
Applicable media: Steel grit or shot
Principle
A total of 8 blast wheel blades are mounted on the wheel assembly. An impeller that rotates synchronously with the critical shot blast parts carries the shot to an opening in the control cage, from where it is discharged on to the bladed wheel. There, the shot is shoveled by the wheel blades and is further accelerated as it is threw onto the work.
Impeller keeps synchronous rotation with the blast wheel blades, making sure that shot can be moved to the blades without vibration, thus reducing abrasion of the important shot blasting supplies.
We can customize replacement blast wheel blades for the shot blasting machines of following brands: SINTO, DISA, PANBORN, WHEELABRATOR and OMSG
| High chromium alloy cast iron | High manganese alloy steel | |||||||
| Chemical compositions % | C | 2.7-3.1 | Mechanical properties | Tensile strength kg/mm2 | ≤ 40 | Chemical compositions % | C | 0.9-1.3 |
| Si | <1.0 | Si | ≤0.8 | |||||
| Mn | 0.8-1.1 | Hardness HS | > 70 | Mn | 11-14 | |||
| P | <0.06 | P | <0.07 | |||||
| Cr | 25-30 | Impact resistance kgm/cm 2 | > 0.3 | S | <0.05 | |||
| S | <0.05 | 0 | 0 | |||||

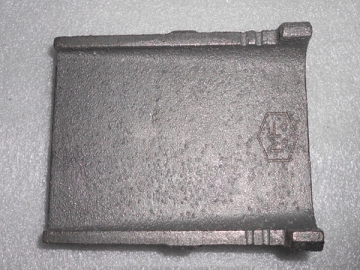

- Blast wheel blade for DISA shot blasting machine
- Blast wheel blade for DISA shot blasting machine
- Blast wheel blade for Taiwan Chunhui shot blasting machine
- Blast wheel blade for SINTO shot blasting machine

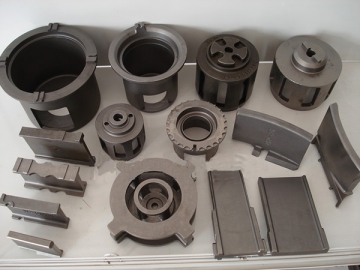

As professional shot blasting machine parts manufacturer, we are able to supply other replacement parts:
- Shot Blasting Machine Parts

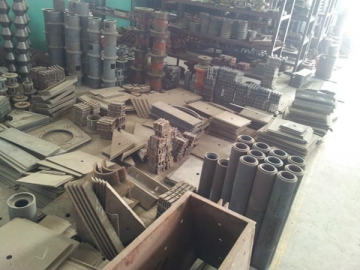

- Shot Blasting Machine Parts Warehouse
