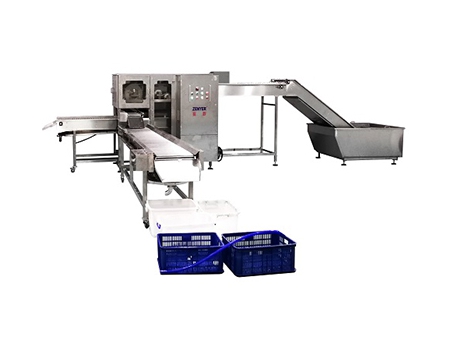

This egg separator is designed for separating duck eggs and integrated various functions including water bath loading, egg ordering, egg breaking, separating yolk and egg white, etc. It is made of 316 stainless steel and meets the food safety standards. Pour an entire tray or box of duck eggs into the water bath, which will then carry the duck eggs to the entrance of spinning plate in six feeding lines with the use of a roll-type slope egg feeding device. The egg white, yolk, and eggshell will flow into separate channels for manual collection. This machine has a maximum capacity of 30000 eggs/hour. It is convenient to use and can help you save labor and time.

Specifications

Salted duck egg separator

Model ZYD-MS6
Product code 502B
Capacity 30,000 eggs/hour
Power 3KW, 50HZ
Voltage* 380V, 3-phase
Length* Width* Height 9.86*5.55*1.88 M
Net weight 1000 kg
Gross weight 1500 kg
Functions Water bath loading, ordering, Egg Breaking, Egg Yolk Separating from Egg White, Egg Yolk, Egg White and Eggshell Collecting
Operation Flow
  • Water bath loading
  • Egg ordering
  • Egg breaking
  • Egg separating
  • Egg white, egg yolk and egg shell collecting
    Water bath loading

    manually pour an entire tray or box of duck eggs into the water bath.

    Egg ordering

    The rubber rollers adjust the position and posture of the duck eggs by rolling and sent them to the entrance of spinning plate.

    Egg breaking

    The spinning plates with blades catch the duck eggs from the conveyor and split them evenly from the bottom.

    Separating yolk and egg white

    The grippers catch the duck eggs and separate the yolk and egg white from the incision.

    Egg white, egg yolk and egg shell collecting

    the egg white, yolk, and eggshell will flow into separate channels for manual collection.
