Automatic Pipe Flange Welding Machine (GTAWTIG)
Request a Quote

Model: PFAWC-16Ba/24Ba/32Ba/48Ba/64Ba

Technical Parameters
  • Pipe Diameter Applicable: DN400/DN600/DN800/DN1200/DN1600
  • Pipe Wall Thickness Applicable: 3-20MM
  • Applicable Materials: Carbon steel, alloy steel, stainless steel and cryogenic steel, etc.
  • Welding Line Applicable: Welding line of flange pipe

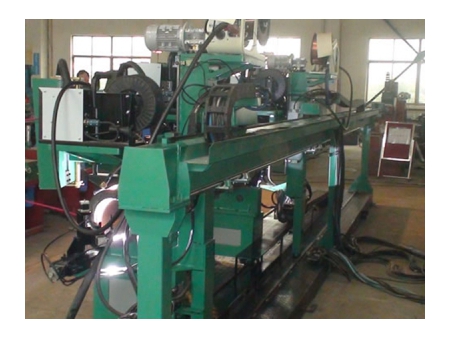

  • Machine Head System: One welding head with two welding guns at one end/two welding heads with four welding guns both at two ends
  • Driving System: Driven the motor of active idler wheel frame
  • Clamping System: Clamped by chain or contact roller
  • Bracket System: Two sets of motorized idler wheel to be set and it is adjustable according to the pipe length along the track
  • Speed Regulation Mode: VF stepless speed control system
  • Adjustment Mode: Electric cross regulator
  • Swaying System: A product of our patented technology, driven by step motor and oscillating adjusting with digital display
  • Control System: A product of our patented technology
  • Welding Procedure: GTAW/TIG
  • Welding Power: OEM products in China (or as per customers' demands)

Applications
Slip-on flange for the welding of the internal and external incidence angle.

Features
  • The automatic pipe flange welding machine offers excellent welding capacity (150-250 inch/day, which is four times higher than manual welding).
  • The machine is easy to operate.
  • The automatic pipe flange welding machine offers excellent surface forming.
  • It offers a welding compliance rate (without re-working for the skilled operator).
  • The automatic pipe flange welding offers good driving reliability.

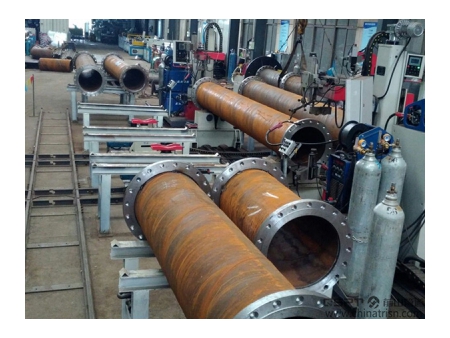

  • Classic product; widely used in industries like shipbuilding, mining, irrigation; suitable for welding pipe segments such as “flange pipe flange”; welding efficiency increased by more than 200%; one fixed-type wheel rotator; one movable wheel-supporting trolley; two movable welding trolleys; standard configuration: four Lincoln CV500 inverter welding power supplies; welding synchronously at inner and outer fillet with four MIG welding torches; operated with aluminum alloy control box.
