PN16 Grooved Pipe Flange

PN16 Grooved Pipe Flange
PN16 Grooved Pipe Flange
Request a Quote

Product Introduction
Material: ductile iron
Application: Plumbing, fire protection
Coating: red paint, galvanized paint
FM approved, UL listed

Technical Data

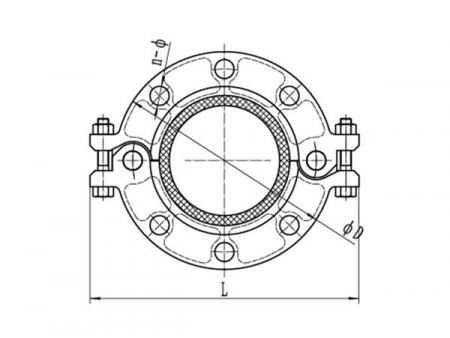

Grooved Flange PN16 XGQT09
Nominal Size mm/in Pipe O.D mm/in Dimensions Bolt/Nut Working pressure (psi)
D L n-φ No.-size (mm)
mm mm
50 60.3 164 210 4-φ18 3/8×2-3/4
(M10×70)
230
2 2.375
65 73 182 240 8-φ18
21/2 2.875
65 76.1 182 240 8-φ18
21/2 3
80 88.9 194 250 8-φ18
3 3.5
100 108 216 266 8-φ18
4 4.25
100 114.3 216 266 8-φ18
4 4.5
125 133 247 300 8-φ18
5 5.25
125 139.7 247 300 8-φ18
5 5.5
125 141.3 247 300 8-φ18
5 5.563
150 159 282 336 8-φ22 1/2×2-3/4
(M12×70)
6 6.25
150 165.1 282 336 8-φ22
6 6.5
150 168.3 282 336 8-φ22
6 6.625
200 219.1 335 395 12-φ22 1/2×3-1/8
(M12×80)
8 8.625
250 273 404 470 12-φ26
14 10.75

LEDE company design and manufacture grooved piping system jointing fittings, is a leading China PN16 grooved pipe flange manufacturer and supplier, provide pipe jointing and flow control products of fire protection system and water work system. There are different sizes of pipe flange for grooved piping system, made in accordance with FM, UL, CE certificates, etc. Engineered with complete automation equipment and manufacturing expertise, LEDE company provides quality ductile iron grooved flange as well as custom firefighting and water supply solutions based on the client needs.
