ANSI 125/150 Grooved Pipe Flange

ANSI 125/150 Grooved Pipe Flange
ANSI 125/150 Grooved Pipe Flange
Request a Quote

Product Introduction
Material: ductile iron
Application: plumbing, fire protection
Coating: red paint, galvanized paint
FM approved, UL listed.

Technical Data
Grooved Flange ANSI125/150 XGQT091

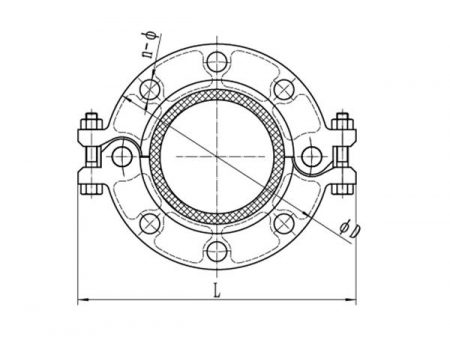

Nominal Size mm/in Pipe O.D mm/in Dimensions Bolt/Nut Working pressure (psi)
D L n-φ No.-size (mm)
mm mm
50 60.3 164 210 4-φ18 3/8×2-1/8
(M10×55)
250
2 2.375
65 73 176 240 4-φ18 3/8×2-3/4
(M10×70)
21/2 2.875
80 88.9 192 250 4-φ18
3 3.5
100 114.3 224 278 8-φ18
4 4.5
125 141.3 254 310 8-φ22
5 5.563
150 168.3 282 336 8-φ22 1/2×3-1/8
(M12×80)
6 6.625
200 219.1 343 395 8-φ22 1/2×3-1/8
(M12×80)
8 8.625
250 273 362 503 12-φ26 1/2×4
(M16×100)
14 10.75
300 323.9 432 580 12-φ26 1/2×4
(M16×100)
16 12.75

LEDE company design and manufacture grooved piping system jointing fittings, is a leading China ANSI125 ANSI150 grooved pipe flange manufacturer and supplier, provide pipe jointing and flow control products of fire protection system and water work system. There are different sizes of grooved pipe flange for grooved piping system, made in accordance with FM, UL, CE certificates, etc. Engineered with complete automation equipment and manufacturing expertise, LEDE company provides quality ductile iron grooved flange as well as custom firefighting and water supply solutions based on the client needs.
