ANSI 125/150 Grooved Flange Adapter

ANSI 125/150 Grooved Flange Adapter
ANSI 125/150 Grooved Flange Adapter
Request a Quote

Product Introduction
Ductile iron construction.
Lead free red paint
Conforms to ASTM A536 standards
UL listed, FM approved

Technical Data
Flange adaptor ANSI125/150 XGQT081

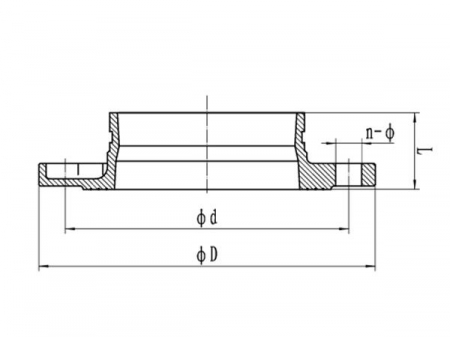

Nominal Size mm/in Pipe O.D mm/in Dimensions( mm) Working pressure (Psi)
ΦD Φd L n-φ
65 73.00 178 140 75 4-φ18 250
21/2 2.875
80 88.90 191 153 75 4-φ18
3 3.50
100 114.30 229 191 102 8-φ18
4 4.50
150 168.30 280 241 102 8-φ22
6 6.625

LEDE company design and manufacture grooved piping system jointing fittings, is a leading China ANSI125 ANSI150 grooved flange adapter manufacturer and supplier, provide pipe jointing and flow control products of fire protection system and water work system. There are different sizes of flange adapter for grooved piping system, made in accordance with FM, UL, ASTM certificates, etc. Engineered with complete automation equipment and manufacturing expertise, LEDE company provides quality ductile iron flange adapter as well as custom firefighting and water supply solutions based on the client needs.
