EME03 UNT Alu-Power 3 Flute Carbide
Request a Quote
- High performance in machining aluminum alloy / copper alloy / graphite / resin and non-ferrous material
- 3 Flute design “To the center” - all 3 flutes come to the center, resulting in good surface finishes
- Excellent performance with high feed, high RPM, high chip removal during heavy cutting
- Center & slotting cutting

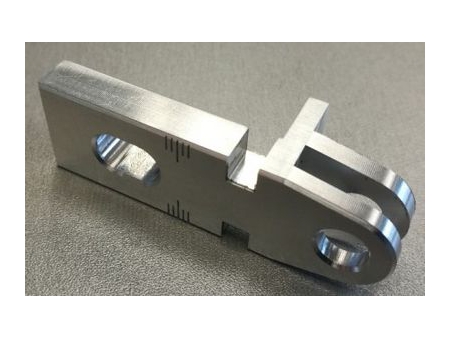

Application
Product Specifications
Coating | Non-Coated or TiN, TiCN & TiAIN | Work Material | Aluminum Alloy / Copper Alloy / Graphite / Resin |
Helix Angle | 45° | Shank | Cylindrical H6 |
Material | IMC™ Carbide Rod | Tolerance on Cutting Diameter | 0-0.030 |
Carbide 3 Flute End Mill, 45° Helix, Regular Length – Slotting (UNT-EME03)
Unit: mm UNT EDP # Click to Order | Mill Dia. D1 | Shank Dia. D2 | Flute Length L1 | O.A.L. L2 | Flutes |
EME03010 | 1.0 | 4 | 3 | 50 | 3 |
EME03015 | 1.5 | 4 | 4 | 50 | 3 |
EME03020 | 2.0 | 4 | 6 | 50 | 3 |
EME03025 | 2.5 | 4 | 6 | 50 | 3 |
EME030303 | 3.0 | 3 | 8 | 50 | 3 |
EME03030 | 3.0 | 4 | 8 | 50 | 3 |
EME03040 | 4.0 | 4 | 11 | 50 | 3 |
EME030505 | 5.0 | 5 | 13 | 50 | 3 |
EME03050 | 5.0 | 6 | 13 | 50 | 3 |
EME03060 | 6.0 | 6 | 16 | 50 | 3 |
EME03070 | 7.0 | 8 | 20 | 60 | 3 |
EME03080 | 8.0 | 8 | 20 | 60 | 3 |
EME03090 | 9.0 | 10 | 25 | 75 | 3 |
EME03100 | 10.0 | 10 | 25 | 75 | 3 |
EME03120 | 12.0 | 12 | 30 | 75 | 3 |
EME03140 | 14.0 | 14 | 40 | 100 | 3 |
EME03160 | 16.0 | 16 | 40 | 100 | 3 |
EME03200 | 20.0 | 20 | 40 | 100 | 3 |
• End mills with non-standard sizes or specifications not listed above can be customized according to customer needs.
