PCBN Blank

Description
The PCBN blank has the advantages of high hardness, highthermo stability, high chemical stability, good strength and good weld ability. The PCBN cutting tool can realize highspeed cutting, hard material cutting and dry cutting.  It can precisely process the products and replace grinding with turning.  The PCBN cutting tool meets the requirements of environmentalprotection.
Our PCBN blank
is manufactured by world famous companies such as Element Six (DeBeers), DI (GE), ILJIN, SMITH,SUMITOMO and TOMEI.  We also offer laserengraving service of PCBN blank.

Features
1. The PCBN blank feature
s high hardness and high abrasive resistance.  The hardnessof PCBN blank is 3,000HV to 5,000HV.  Theabrasive resistance of PCBN cutting tool is 50 times that of hard alloy cuttingtool, 30 times that of coating hard alloy cutting tool and 25 times that ofceramic cutting tool.
2. The PCBN blank ha
s high thermo stability and heat resistance.  The heat resistance of PCBN cutting tool canreach 1400 to 1500.
3. The PCBN blank ha
s high chemical stability.  With high oxidation resistance, PCBN cutting toolwill not be oxidized under the temperature of 1000.  Even under 1200 to 1300, PCBN cuttingtool will not react to iron series material.
4. The PCBN blank feature
s good thermal conductivity.  Its thermal conductivity is lower thandiamond but it is higher than tungstencarbide.
5. The PCBN has low friction coefficient.  The friction coefficient of PCBN is 0.1 to0.3, while that of
tungstencarbide is 0.4 to 0.6.

Application
The PCBN blank appl
ies tovarious ferrous metals, such as cast iron, nodular cast iron, pearlite castiron, hardened steel, bearing steel, tungstencarbide, roller, and sintered alloy.

Technical Specifications

Specification of PCD Blank (Discs)

Company

Model

Dimension (mm) Diameter • Thickness

Grain Size (μm)

PCD Layer Thickness (mm)

Element Six (E6)

CTB002

¢74x1.6/2.0/3.18

2μm

0.3/0.5/0.7

CTB010

¢74x1.6/2.0/3.18

10μm

0.3/0.5/0.7/1.0

CTH025

¢74x1.6/2.0/3.18

25μm

0.5

CTM302

¢74x1.6/2.0/3.18

30μm 2μm

0.5/0.7/1.5

SUMITOMO

DA90

¢64x1.6/2.0/3.18

50μm

0.5

DA150

¢64x1.6/2.0/3.18

5μm

0.5

DA200

¢64x1.6/2.0/3.18

0.5μm

0.5

DA2200

¢64x1.6/2.0/3.18

0.5μm

0.5

GE (DI)

GE1600

¢58x1.6/2.0/3.18

4μm

0.5

GE1300

¢58x1.6/2.0/3.18

5μm

0.5

GE1500

¢58x1.6/2.0/3.18

25μm

0.5

GE1800

¢58x1.6/2.0/3.18

25μm 4μm

0.5

SMITH

M10

¢58x1.6/2.0/3.18

10μm

0.5

AMX

¢58x1.6/2.0/3.18

9μm

0.5

F05

¢58x1.6/2.0/3.18

5μm

0.5

C30X

¢58x1.6/2.0/3.18

30μm

0.5

ILJIN

CC

¢60x1.6/2.0/3.18

25μm

0.5

CM

¢60x1.6/2.0/3.18

10μm

0.5

CF

¢60x1.6/2.0/3.18

4μm

0.5

CXL

¢60x1.6/2.0/3.18

25μm

0.5


Material
The PCBN blank uses CBN powder and tungsten carbide.

Packaging

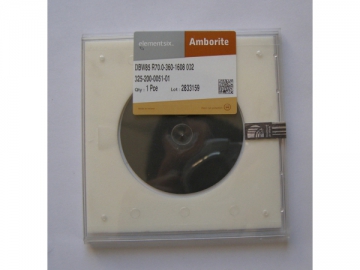

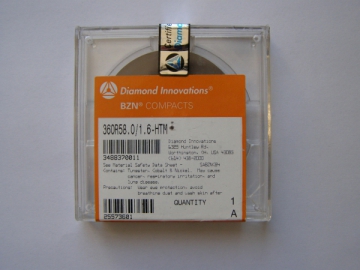

The PCBN blank is packaged in a plasticcase.

World is a PCBN blank manufacturer and supplier, based in China.  We offer PCBN blanks, carbide axles, PCBNinserts, etc.  Our high quality productsare offered at competitive prices.  The fullchain of manufacturing tungsten carbide supported die blanks and PDC cutterscan be completed in China,even in one city.  Our lowermanufacturing cost saves your purchasing cost.  More details of each product are shown on thepage with description.
