Construction Limestone, CaCO3, Gypsum Processing
Summary
Vostosun provides customers with special solutions for limestone crushing and grinding.
The limestone grinding process consists of three steps: crushing, grinding and bagging. First, crush the limestone in the main crusher. Next, grind in the Raymond powder mill. Last, qualified limestone can be bagging and be put in production storage, but others have to be ground again. The can be made depend on the requirement of fineness of limestone.
Associated Equipment

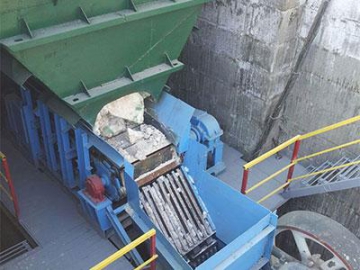

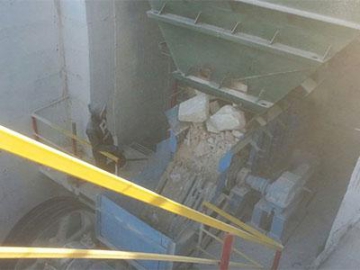

1. Stone Crushing Jaw Crusher
2. Impact Crusher
3. Vibrating Screen
4. Raw Material Warehouse

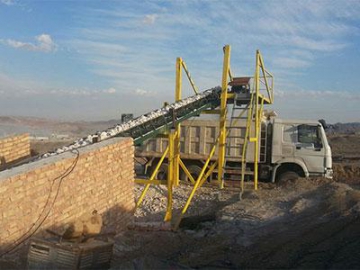

5. Belt Conveyor System

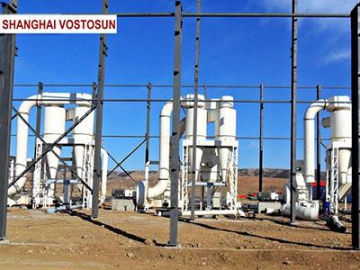

6. High Pressure Ultrafine Grinding Mill
7. Pulse Jet Baghouse Dust Collector
8. Cyclone Dust Collector
9. Electric Control Cabinet
Customer Case
Place: Uzbekistan
Procurement equipment: 3 sets of powder grinding equipment (0.3 billion t/a)
Processing materials: limestone
Raw material fineness: ≤500 mm
Production fineness: (250-325) mesh
Moisture: ≤6%
Daily operation: 24 h
A power plant desulfurization powder supplier purchased three sets of YCVXO130-YHR high pressure ultrafine grinding equipment to grind limestone from Vostosun. They produce finished mineral powder for the nearby power plant to remove sulfur, and the equipment has been put to use with great success.
