Model: AM-GMRX-10

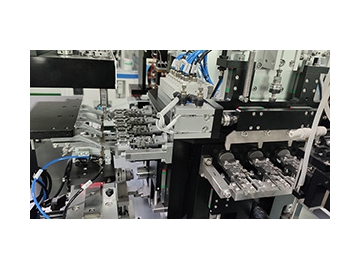

This winding machine is specially designed for winding coils on common mode choke. To achieve high efficiency and great precision, the servo motor is used for driving winding spindles, XYZ axis and turntable. Due to the high precision servo motor, the inductor core can be conveyed by the turntable to the different stations for different processes including winding and spot welding in a precise and automated manner. The common mode choke coil winding machine comes with a vibratory bowl feeder, ensuring a consistent and accurate inductor core feeding. Coil winding types are available with single and double wire winding. Accurate count is achieved by a PLC control system. The max. winding speed reaches up to1200 pieces/h.

Product Details:
Technical Parameters
Feeding Mode Vibratory bowl feeder
Winding Mode Main spindle rotation winding
Application 4532, 3225, 2012 common mode chokes
Applicable Wire Diameter 0.04-0.10mm
Applicable number of Wires wound Single wire or double wires winding
Number of Spindles Four Spindles
Drive Mode Direct drive motor (four stations)
Spindle Speed Max. 3000rpm
Machine Capacity 1.0 Kpcs/H-1.3 Kpcs/H
Working Environment  -5 ℃ ~ 50 ℃ (no corrosive and harmful gas, no dust and other harsh environments)
Operation and Control Mode Imported PLC control system, intuitive HMI screen for easy operation
Machine Size L1600mm x W1450mm x H1800mm
Power Supply single-phase AC220V, 50HZ
Air Supply 0.5 ~ 0.7MPa
Power 4.5KW
Machine Weight about 700KG
