Model: AM-FSRX-10

Featured with a tension feeder, the coil winding machine is specially designed for the winding of the wireless charging coil with different shapes. This machine features single layer winding, and Alpha winding is available upon request. The wire diameter ranges from 0.3 to 1.2mm. With a PLC control system, precise winding and counting is ensured. An emergency braking device with an alarm system provides great protection during the abnormal operation.

Technical Parameters

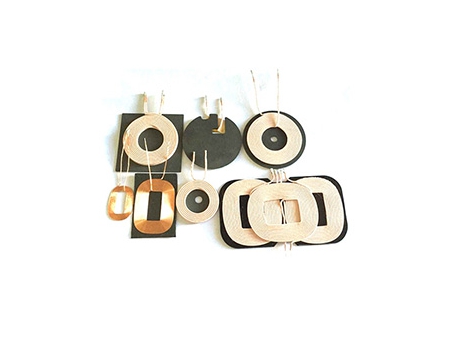

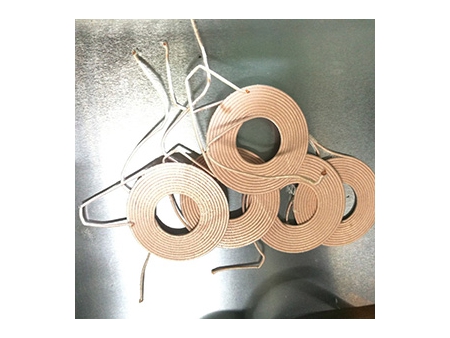

Application Wireless charging coil
Feeder Tensioner
No. of spindles 1
Winding method Alpha winding or single winding
Wire size 0.3-1.2mm
Control system PLC
Capacity 280-380pcs/h(Alpha); 800-1000pcs/H(single)
Dimensions(mm) 1000*700*1800mm(L*W*H)
Air supply 0.4-0.6Mpa
Working environment 0-50℃(No corrosive gas, harmful gas, flying dust, etc.)
Power supply Single phase AC220V/50HZ
Power consumption 3kw
Weight 300kg

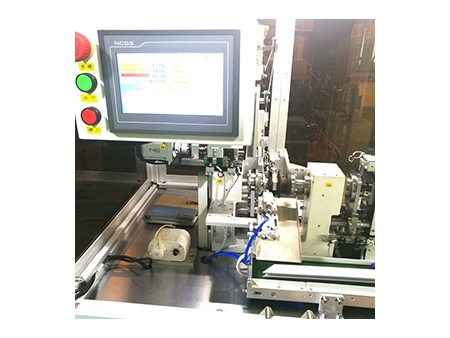

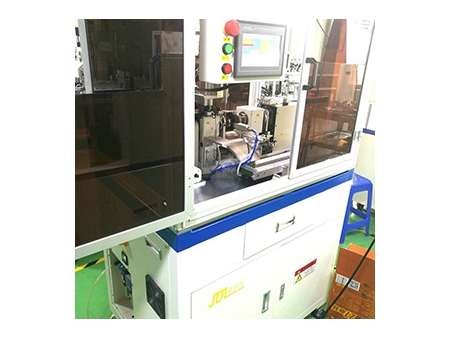

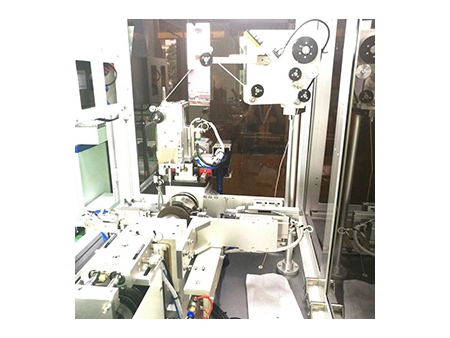

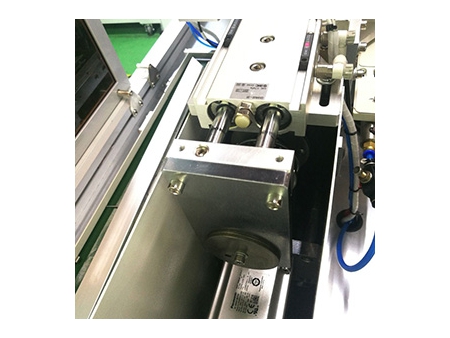

Product Details:
