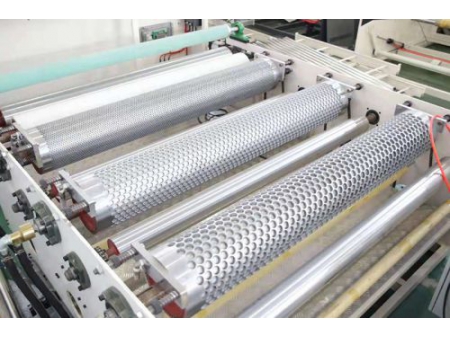

5-layer Air Bubble Film Extrusion Line

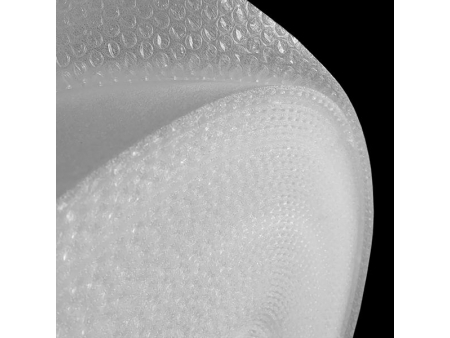

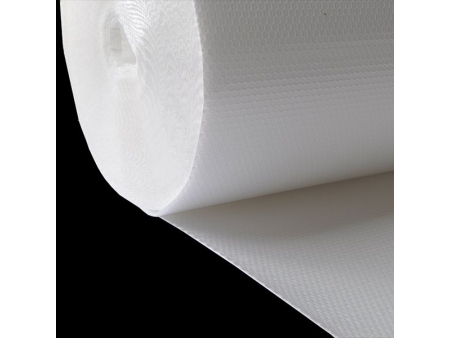

This 5-layer air bubble film extrusion line is designed to produce up to 5-layer air bubble film that is composed of one layer of air bubbles, two flat polyethylene layers and two PE coated layers. Besides, the bubble film line can also manufacture 2-layer / 3-layer air bubble films, and 3 or 4 layers laminated air bubble films with a PE coated layer on one side.
- Poly film laminated air bubble film
- Kraft paper laminated air bubble film
- EPE foam laminated air bubble film

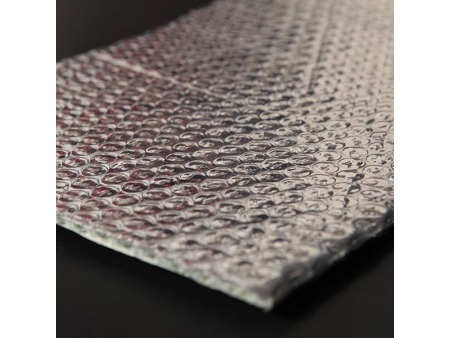

- Aluminum laminated air bubble film
- Wide range of PE coated layers, including PE coated aluminum foil, PE coated kraft paper, polyethylene film, PE coated antistatic film, PE coated nonwoven fabric, etc.;
- The design of double screw increases the productivity by 50%-80%, helping customers stay ahead in their competitive market;
- The thickness and color of each layer can be individually adjusted;
- Automatic cutting and rewinding, providing improved production efficiency;
- 24-hour continuous running, high reliability and easy to operate;
- SGS CE and ISO 9001 compliant;
- Stable production process, long service life;
Model: PT-L5-S3-W1200
Bubble film width (mm): 1200
Material: LDPE/LLDPE
Line speed (m/hr): 600-2100
Capacity (kg/hr): 85-140
Thickness (g/m2): 38- 300
Main screw diameter (mm): Φ65(x2)
Sub screw diameter (mm): Φ50
Heating power (kW): 82
Operation power (kW): 40
Installation power (kW): 122
Dimension (L×W×H) (m): 10×5.5×2.5
Weight (kg): 6500
Model: PT-L5-S3-W1600
Bubble film width (mm): 1600
Material: LDPE/LLDPE
Line speed (m/hr): 600-2100
Capacity (kg/hr): 100-170
Thickness (g/m2): 38-300
Main screw diameter (mm): Φ65(x2)
Sub screw diameter (mm): Φ50
Heating power (kW): 104
Operation power (kW): 51
Installation power (kW): 146
Dimension (L×W×H) (m): 10×6.5×2.5
Weight (kg): 7200
Model: PT-L5-S3-W2000
Bubble film width (mm): 2000
Material: LDPE/LLDPE
Line speed (m/hr): 600-2100
Capacity (kg/hr): 125-200
Thickness (g/m2): 40-300
Main screw diameter (mm): Φ75(x2)
Sub screw diameter (mm): Φ65
Heating power (kW): 136
Operation power (kW): 66
Installation power (kW): 201
Dimension (L×W×H) (m): 11×7.0×2.5
Weight (kg): 8000
Model: PT-L5-S3-W2600
Bubble film width (mm): 2600
Material: LDPE/LLDPE
Line speed (m/hr): 600-2100
Capacity (kg/hr): 145-220
Thickness (g/m2): 45-300
Main screw diameter (mm): Φ80(x2)
Sub screw diameter (mm): Φ75
Heating power (kW): 155
Operation power (kW): 75
Installation power (kW): 245
Dimension (L×W×H) (m): 12×8.0×2.5
Weight (kg): 9500
Model: PT-L5-S3-W3000
Bubble film width (mm): 3000
Material: LDPE/LLDPE
Line speed (m/hr): 600-2100
Capacity (kg/hr): 180-260
Thickness (g/m2): 45-300
Main screw diameter (mm): Φ90(x2)
Sub screw diameter (mm): Φ80
Heating power (kW): 180
Operation power (kW): 86
Installation power (kW): 298
Dimension (L×W×H) (m): 12×8.7×2.5
Weight (kg): 12000
| Model | PT-L5-S3-W1200 | PT-L5-S3-W1600 | PT-L5-S3-W2000 | PT-L5-S3-W2600 | PT-L5-S3-W3000 |
| Bubble film width (mm) | 1200 | 1600 | 2000 | 2600 | 3000 |
| Material | LDPE/LLDPE | LDPE/LLDPE | LDPE/LLDPE | LDPE/LLDPE | LDPE/LLDPE |
| Line speed (m/hr) | 600-2100 | 600-2100 | 600-2100 | 600-2100 | 600-2100 |
| Capacity (kg/hr) | 85-140 | 100-170 | 125-200 | 145-220 | 180-260 |
| Thickness (g/m2) | 38- 300 | 38-300 | 40-300 | 45-300 | 45-300 |
| Main screw diameter (mm) | Φ65(x2) | Φ65(x2) | Φ75(x2) | Φ80(x2) | Φ90(x2) |
| Sub screw diameter (mm) | Φ50 | Φ50 | Φ65 | Φ75 | Φ80 |
| Heating power (kW) | 82 | 104 | 136 | 155 | 180 |
| Operation power (kW) | 40 | 51 | 66 | 75 | 86 |
| Installation power (kW) | 122 | 146 | 201 | 245 | 298 |
| Dimension (L×W×H) (m) | 10×5.5×2.5 | 10×6.5×2.5 | 11×7.0×2.5 | 12×8.0×2.5 | 12×8.7×2.5 |
| Weight (kg) | 6500 | 7200 | 8000 | 9500 | 12000 |
