Request a Quote

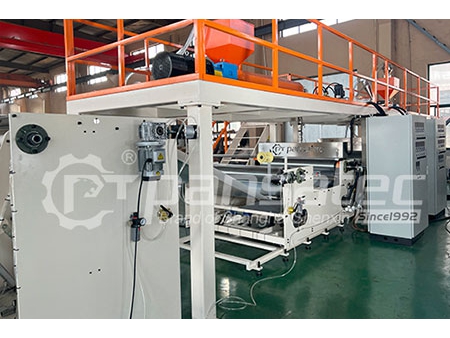

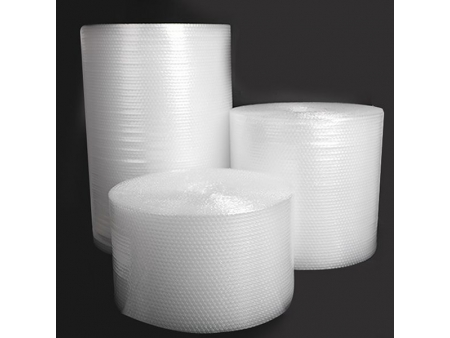

Our 3-layer air bubble film extrusion line is able to produce both 2 layers and 3 layers bubble film rolls.

Structure Diagram of 2-layer/3-layer Air Bubble Film
Features
  • Able to produce both 2-layer and 3-layer bubble film;
  • Production speed can reach 35meter per minute, high productivity with less labor cost;
  • Produced bubble film features high resistance to bursting, the thickness can reach 30GSM;
  • 24-hour continuous running, high reliability and easy to operate;
  • Stable production process, long service life;
Details
3D Process Flow Diagram
Specifications

Model: PT-L3-S3-W1200
Bubble film width (mm): 1200
Material: LDPE/LLDPE
Line speed (m/hr): 600 – 2100
Capacity (kg/hr): 85 – 140
Thickness (g/m2): 38- 300
Main screw diameter (mm): Φ65(x2)
Sub screw diameter (mm): Φ50
Heating power (kW): 82
Operation power (kW): 40
Installation power (kW): 122
Dimension (L×W×H) (m): 10×5.5×2.5
Weight (kg): 6500

Model: PT-L3-S3-W1600
Bubble film width (mm): 1600
Material: LDPE/LLDPE
Line speed (m/hr): 600 – 2100
Capacity (kg/hr): 100 – 170
Thickness (g/m2): 38 – 300
Main screw diameter (mm): Φ65(x2)
Sub screw diameter (mm): Φ50
Heating power (kW): 104
Operation power (kW): 51
Installation power (kW): 146
Dimension (L×W×H) (m): 10×6.5×2.5
Weight (kg): 7200

Model: PT-L3-S3-W2000
Bubble film width (mm): 2000
Material: LDPE/LLDPE
Line speed (m/hr): 600 – 2100
Capacity (kg/hr): 125 – 200
Thickness (g/m2): 40 – 300
Main screw diameter (mm): Φ75(x2)
Sub screw diameter (mm): Φ65
Heating power (kW): 136
Operation power (kW): 66
Installation power (kW): 201
Dimension (L×W×H) (m): 11×7.0×2.5
Weight (kg): 8000

Model: PT-L3-S3-W2600
Bubble film width (mm): 2600
Material: LDPE/LLDPE
Line speed (m/hr): 600 – 2100
Capacity (kg/hr): 145 – 220
Thickness (g/m2): 45 – 300
Main screw diameter (mm): Φ80(x2)
Sub screw diameter (mm): Φ75
Heating power (kW): 155
Operation power (kW): 75
Installation power (kW): 245
Dimension (L×W×H) (m): 12×8.0×2.5
Weight (kg): 9500

Model: PT-L3-S3-W3000
Bubble film width (mm): 3000
Material: LDPE/LLDPE
Line speed (m/hr): 600 – 2100
Capacity (kg/hr): 180 – 260
Thickness (g/m2): 45-300
Main screw diameter (mm): Φ90(x2)
Sub screw diameter (mm): Φ80
Heating power (kW): 180
Operation power (kW): 86
Installation power (kW): 298
Dimension (L×W×H) (m): 12×8.7×2.5
Weight (kg): 12000

Model PT-L3-S3-W1200 PT-L3-S3-W1600 PT-L3-S3-W2000 PT-L3-S3-W2600 PT-L3-S3-W3000
Bubble film width (mm) 1200 1600 2000 2600 3000
Material LDPE/LLDPE LDPE/LLDPE LDPE/LLDPE LDPE/LLDPE LDPE/LLDPE
Line speed (m/hr) 600 – 2100 600 – 2100 600 – 2100 600 – 2100 600 – 2100
Capacity (kg/hr) 85 – 140 100 – 170 125 – 200 145 – 220 180 – 260
Thickness (g/m2) 38- 300 38 – 300 40 – 300 45 – 300 45-300
Main screw diameter (mm) Φ65(x2) Φ65(x2) Φ75(x2) Φ80(x2) Φ90(x2)
Sub screw diameter (mm) Φ50 Φ50 Φ65 Φ75 Φ80
Heating power (kW) 82 104 136 155 180
Operation power (kW) 40 51 66 75 86
Installation power (kW) 122 146 201 245 298
Dimension (L×W×H) (m) 10×5.5×2.5 10×6.5×2.5 11×7.0×2.5 12×8.0×2.5 12×8.7×2.5
Weight (kg) 6500 7200 8000 9500 12000
