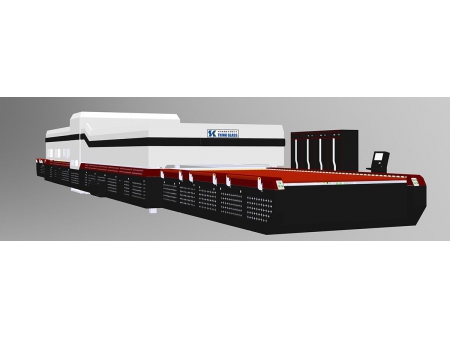

Combined Flat-Bent Glass Tempering Furnace

Combined Flat-Bent Glass Tempering Furnace
Combined Flat-Bent Glass Tempering Furnace
Combined Flat-Bent Glass Tempering Furnace
Combined Flat-Bent Glass Tempering Furnace
Combined Flat-Bent Glass Tempering Furnace
Request a Quote

The glass tempering furnace is used for processing top quality flat and bent tempered glass for automobile, shower rooms, range hoods, household appliances, architecture, etc.

Specifications
Model Max. Glass Size (mm) Min. Glass Size (mm) Glass Thickness Range (mm) Output (batch/hour) Installed Capacity (kVA)
DLTPG2515 2500*1500 200*200 2.85~15 18 315
DLTPG4012 4000*1250 160*160 2.85~15 18 400
DLTPG4015 4000*1500 200*200 2.85~15 18 500
DLTPG5015 5000*1500 200*200 2.85~15 18 630
DLTPG3620 3660*2000 240*240 4~19 18 500
DLTPG4220 4200*2000 240*240 4~19 18 630
DLTPG3624 3660*2440 240*240 4~19 18 500
DLTPG4224 4200*2440 240*240 4~19 18 630
DLTPG5024 5000*2440 240*240 4~19 18 630
DLTPG6024 6000*2440 240*240 4~19 17 800
DLTPG8024 8000*2440 240*240 4~19 16 1250
DLTPG5028 5000*2800 300*300 5~19 16 800
DLTPG6028 6000*2800 300*300 5~19 16 1000
DLTPG8028 8000*2800 300*300 5~19 16 1250
DLTPG5030 5000*3000 300*300 5~19 16 1000
DLTPG6030 6000*3000 300*300 5~19 16 1250
DLTPG8030 8000*3300 350*350 5~19 16 1600

  • Max. Glass Size (mm): 2500*1500
  • Min. Glass Size (mm): 200*200
  • Glass Thickness Range (mm): 2.85~15
  • Output (batch/hour): 18
  • Installed Capacity (kVA): 315

  • Max. Glass Size (mm): 4000*1250
  • Min. Glass Size (mm): 160*160
  • Glass Thickness Range (mm): 2.85~15
  • Output (batch/hour): 18
  • Installed Capacity (kVA): 400

  • Max. Glass Size (mm): 4000*1500
  • Min. Glass Size (mm): 200*200
  • Glass Thickness Range (mm): 2.85~15
  • Output (batch/hour): 18
  • Installed Capacity (kVA): 500

  • Max. Glass Size (mm): 5000*1500
  • Min. Glass Size (mm): 200*200
  • Glass Thickness Range (mm): 2.85~15
  • Output (batch/hour): 18
  • Installed Capacity (kVA): 630

  • Max. Glass Size (mm): 3660*2000
  • Min. Glass Size (mm): 240*240
  • Glass Thickness Range (mm): 4~19
  • Output (batch/hour): 18
  • Installed Capacity (kVA): 500

  • Max. Glass Size (mm): 4200*2000
  • Min. Glass Size (mm): 240*240
  • Glass Thickness Range (mm): 4~19
  • Output (batch/hour): 18
  • Installed Capacity (kVA): 630

  • Max. Glass Size (mm): 3660*2440
  • Min. Glass Size (mm): 240*240
  • Glass Thickness Range (mm): 4~19
  • Output (batch/hour): 18
  • Installed Capacity (kVA): 500

  • Max. Glass Size (mm): 4200*2440
  • Min. Glass Size (mm): 240*240
  • Glass Thickness Range (mm): 4~19
  • Output (batch/hour): 18
  • Installed Capacity (kVA): 630

  • Max. Glass Size (mm): 5000*2440
  • Min. Glass Size (mm): 240*240
  • Glass Thickness Range (mm): 4~19
  • Output (batch/hour): 18
  • Installed Capacity (kVA): 630

  • Max. Glass Size (mm): 6000*2440
  • Min. Glass Size (mm): 240*240
  • Glass Thickness Range (mm): 4~19
  • Output (batch/hour): 17
  • Installed Capacity (kVA): 800

  • Max. Glass Size (mm): 8000*2440
  • Min. Glass Size (mm): 240*240
  • Glass Thickness Range (mm): 4~19
  • Output (batch/hour): 16
  • Installed Capacity (kVA): 1250

  • Max. Glass Size (mm): 5000*2800
  • Min. Glass Size (mm): 300*300
  • Glass Thickness Range (mm): 5~19
  • Output (batch/hour): 16
  • Installed Capacity (kVA): 800

  • Max. Glass Size (mm): 6000*2800
  • Min. Glass Size (mm): 300*300
  • Glass Thickness Range (mm): 5~19
  • Output (batch/hour): 16
  • Installed Capacity (kVA): 1000

  • Max. Glass Size (mm): 8000*2800
  • Min. Glass Size (mm): 300*300
  • Glass Thickness Range (mm): 5~19
  • Output (batch/hour): 16
  • Installed Capacity (kVA): 1250

  • Max. Glass Size (mm): 5000*3000
  • Min. Glass Size (mm): 300*300
  • Glass Thickness Range (mm): 5~19
  • Output (batch/hour): 16
  • Installed Capacity (kVA): 1000

  • Max. Glass Size (mm): 6000*3000
  • Min. Glass Size (mm): 300*300
  • Glass Thickness Range (mm): 5~19
  • Output (batch/hour): 16
  • Installed Capacity (kVA): 1250

  • Max. Glass Size (mm): 8000*3300
  • Min. Glass Size (mm): 350*350
  • Glass Thickness Range (mm): 5~19
  • Output (batch/hour): 16
  • Installed Capacity (kVA): 1600

Notes: The output is calculated based on the 5mm glass with 80% loading efficiency and 100% finished product rate. The production line configurations depend on the glass thickness.

Features
  • Horizontal bent or vertical bent is optional;
  • Exact formation and good roundness for tempered glass is ensured due to computerized radian adjustment;
  • Irregular shape glass can be produced due to various radian adjustment methods;
  • Radian formed is very stable due to dual motor synchronous drive;
  • Fully automated glass tempering for flat and bent glass;
  • Suitable for tempering various glass types such as clear glass, colored glass, reflective glass;
  • Glass can be bent to the required form without mould, ensuring easy and efficient production;
  • Low energy consumption is ensured because of top quality insulation material and special heat-preservation layer;
  • High speed and perfect glass tempering for any glass factory;
  • Features high automation and easy operation thanks to powerful control software;
Applications

The glass processing equipment is suitable for tempering various glass types such as clear glass, colored glass, reflective glass. The tempered glass has found wide applications in the wall curtains, automobile, shower rooms, range hoods, showcases, etc.

Glass Tempering Furnace Components in Detail

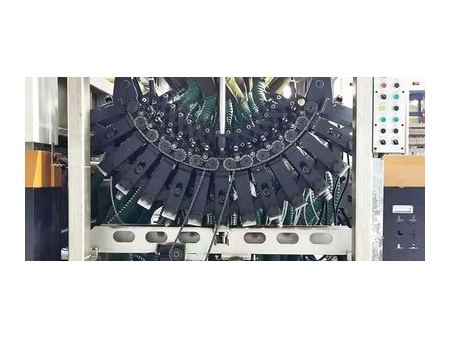

    1. Integrated Glass Processing Unit

      Flat and bend glass can be processed in one machine, significantly enhancing efficiency.

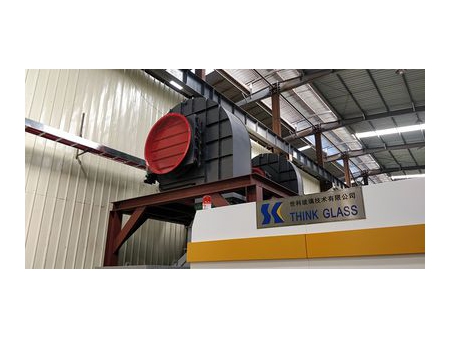

    1. Blowing System

      Energy savings and reduced energy consumption can be achieved due to the efficient blower and Inverter control.

    1. Computerized Control System

      All processing parameters are allowed to be easily preset and changed throughout the process via the user-friendly human-machine interface. The parameters for glass of various thickness are simply saved as orders. In addition, settings can be saved for future use, including glass type and glass thickness. All these enables easy machine operation.

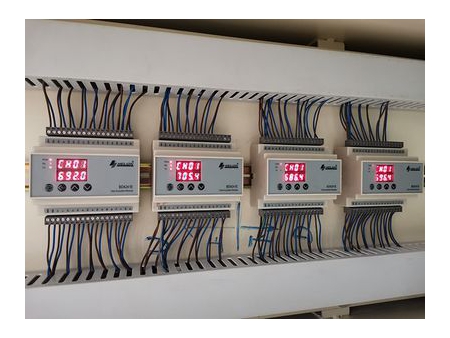

    1. Temperature Control

      PID controller offers precise temperature control in the furnace during the glass processing.
