Convection glass tempering furnace is specially designed for processing flat glass and high quality low-E glass, architectural glass, household glass, automobile glass etc. Equipped with a convection heating system, the glass processing machine provides uniform heat, forced heating on glass surfaces, ensuring high surface quality. Featuring a long-lasting structure and stable design, the operating cost of the glass machinery is minimized. When looking for a convection glass tempering furnace integrated into your glass production line, Thinkglass will be your ideal partner.

Specifications
Model Max. Glass Size (mm) Min. Glass Size (mm) Glass Thickness Range (mm) Output (batch/hour) Installed Capacity (kVA)
DLTPG2515 2500*1500 200*200 2.85~15 18 315
DLTPG4012 4000*1250 160*160 2.85~15 18 400
DLTPG4015 4000*1500 200*200 2.85~15 18 500
DLTPG5015 5000*1500 200*200 2.85~15 18 630
DLTPG3620 3660*2000 240*240 4~19 18 500
DLTPG4220 4200*2000 240*240 4~19 18 630
DLTPG3624 3660*2440 240*240 4~19 18 500
DLTPG4224 4200*2440 240*240 4~19 18 630
DLTPG5024 5000*2440 240*240 4~19 18 630
DLTPG6024 6000*2440 240*240 4~19 17 800
DLTPG8024 8000*2440 240*240 4~19 16 1250
DLTPG5028 5000*2800 300*300 5~19 16 800
DLTPG6028 6000*2800 300*300 5~19 16 1000
DLTPG8028 8000*2800 300*300 5~19 16 1250
DLTPG5030 5000*3000 300*300 5~19 16 1000
DLTPG6030 6000*3000 300*300 5~19 16 1250
DLTPG8030 8000*3300 350*350 5~19 16 1600

  • Max. Glass Size (mm): 2500*1500
  • Min. Glass Size (mm): 200*200
  • Glass Thickness Range (mm): 2.85~15
  • Output (batch/hour): 18
  • Installed Capacity (kVA): 315

  • Max. Glass Size (mm): 4000*1250
  • Min. Glass Size (mm): 160*160
  • Glass Thickness Range (mm): 2.85~15
  • Output (batch/hour): 18
  • Installed Capacity (kVA): 400

  • Max. Glass Size (mm): 4000*1500
  • Min. Glass Size (mm): 200*200
  • Glass Thickness Range (mm): 2.85~15
  • Output (batch/hour): 18
  • Installed Capacity (kVA): 500

  • Max. Glass Size (mm): 5000*1500
  • Min. Glass Size (mm): 200*200
  • Glass Thickness Range (mm): 2.85~15
  • Output (batch/hour): 18
  • Installed Capacity (kVA): 630

  • Max. Glass Size (mm): 3660*2000
  • Min. Glass Size (mm): 240*240
  • Glass Thickness Range (mm): 4~19
  • Output (batch/hour): 18
  • Installed Capacity (kVA): 500

  • Max. Glass Size (mm): 4200*2000
  • Min. Glass Size (mm): 240*240
  • Glass Thickness Range (mm): 4~19
  • Output (batch/hour): 18
  • Installed Capacity (kVA): 630

  • Max. Glass Size (mm): 3660*2440
  • Min. Glass Size (mm): 200*200
  • Glass Thickness Range (mm): 4~19
  • Output (batch/hour): 18
  • Installed Capacity (kVA): 500

  • Max. Glass Size (mm): 4200*2440
  • Min. Glass Size (mm): 240*240
  • Glass Thickness Range (mm): 4~19
  • Output (batch/hour): 18
  • Installed Capacity (kVA): 630

  • Max. Glass Size (mm): 5000*2440
  • Min. Glass Size (mm): 240*240
  • Glass Thickness Range (mm): 4~19
  • Output (batch/hour): 18
  • Installed Capacity (kVA): 630

  • Max. Glass Size (mm): 6000*2440
  • Min. Glass Size (mm): 240*240
  • Glass Thickness Range (mm): 4~19
  • Output (batch/hour): 17
  • Installed Capacity (kVA): 800

  • Max. Glass Size (mm): 8000*2440
  • Min. Glass Size (mm): 240*240
  • Glass Thickness Range (mm): 4~19
  • Output (batch/hour): 16
  • Installed Capacity (kVA): 1250

  • Max. Glass Size (mm): 5000*2800
  • Min. Glass Size (mm): 300*300
  • Glass Thickness Range (mm): 5~19
  • Output (batch/hour): 16
  • Installed Capacity (kVA): 800

  • Max. Glass Size (mm): 6000*2800
  • Min. Glass Size (mm): 300*300
  • Glass Thickness Range (mm): 5~19
  • Output (batch/hour): 16
  • Installed Capacity (kVA): 1000

  • Max. Glass Size (mm): 8000*2800
  • Min. Glass Size (mm): 300*300
  • Glass Thickness Range (mm): 5~19
  • Output (batch/hour): 16
  • Installed Capacity (kVA): 1250

  • Max. Glass Size (mm): 5000*3000
  • Min. Glass Size (mm): 300*300
  • Glass Thickness Range (mm): 5~19
  • Output (batch/hour): 16
  • Installed Capacity (kVA): 1000

  • Max. Glass Size (mm): 6000*3000
  • Min. Glass Size (mm): 300*300
  • Glass Thickness Range (mm): 5~19
  • Output (batch/hour): 16
  • Installed Capacity (kVA): 1250

  • Max. Glass Size (mm): 8000*3300
  • Min. Glass Size (mm): 350*350
  • Glass Thickness Range (mm): 5~19
  • Output (batch/hour): 16
  • Installed Capacity (kVA): 1600

Notes: The output is calculated based on the 5mm glass with 80% loading efficiency and 100% finished product rate. The production line configurations depend on the glass thickness.

Features
  • Jet forced convection is used to heat the top of glass surface, adopts heat balance system on the bottom to adjust the heat quantity in chamber, offering uniform and efficient heating.
  • The glass tempering machine is designed with a PID controller for achieving precise temperature control.
  • The convection system is used to shorten heating time, improving glass surface quality.
  • Adopting stainless steel interior wall causes no contamination to the roller bed.
  • The convection is specially designed for processing single silver, double silver and triple silver Low-E glass.
  • The heat from the convection is circulated inside the furnace, minimizing thermal losses.
Applications

Convection glass tempering furnaces is efficient glass machinery designed for architectural glass, home appliances, glass doors, shower doors, automotive glass and furniture glass production.

Glass Tempering Furnace Components in Detail

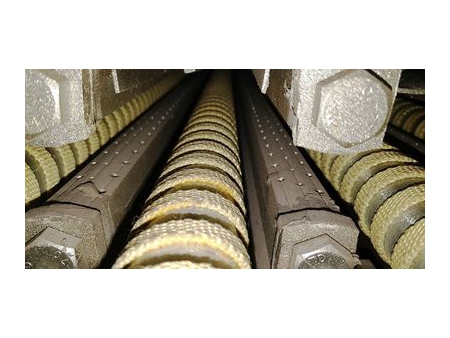

    1. Quenching Station

      Special design for the quenching station minimizes iridescence and produces quality glass.

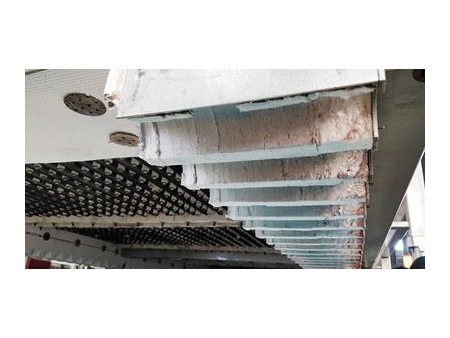

    1. Well-insulated Furnace Body

      The furnace body is equipped with top quality insulation materials to reduce the energy consumption effectively.

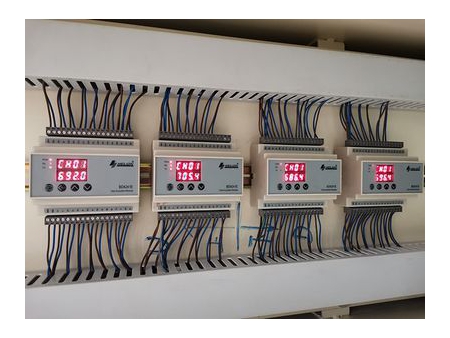

    1. Temperature Control

      PID controller offers precise temperature control in the furnace during the glass processing.

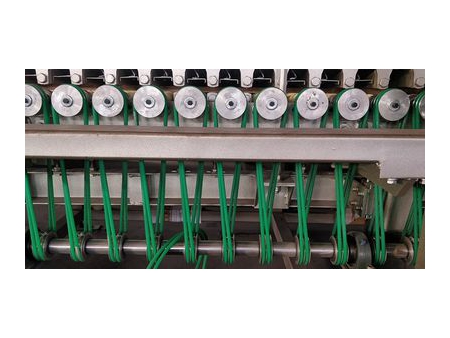

    1. Quick Installation
