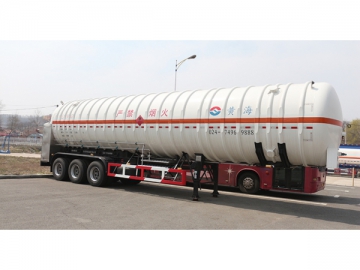

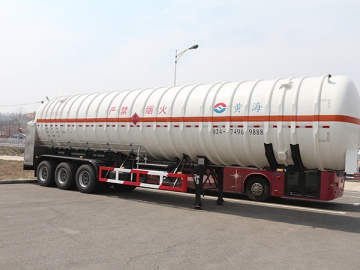

LNG Semi Trailer
Features
1. LNG tank on the semi trailer enjoys an optimized design. It features an outer stiffening ring structure that can enlarge tank's effective capacity. As a result, the tank has a light weight, large capacity, low evaporation rate, low heat leakage, and other advantages.
2. Pipeline arrangement and valves mounting position in the valve box are specially designed, providing high convenience for users to operate.
3. This LNG semi trailer is designed with safety relief device, shell explosion protection device and emergency shutoff device, ensuring absolute safety during transportation as well as charging and discharging process.
Optional Device: Self Liquid Supply System
The system can get liquefied natural gas from the tank and fill the gas cylinder mounted the tractor;
The system is designed for mechanical connection with the LNG transport trailer, allowing ease of installation, use and maintenance.
| Name | LNG Semi Trailer | |
| Main parameters | Model | |
| Overall dimensions L×W×H (mm) | 13,000×2500×3909 | |
| Cargo body inside dimensions L×W×H (mm) | 12,700×2360×600 | |
| Max. total mass ( kg ) | 40,000 | |
| Curb mass ( kg ) | 17,980 | |
| Front/rear suspension ( mm ) | 1550 | |
| Approach/departure angle ( ° ) | 17 | |
| Max. allowed loading capacity ( Kg ) | 220,220 | |
| Axle load weight at full load ( Kg ) | 16,000 ( pin bearing ) 24,000 ( Rear axle ) | |
| Design speed ( m/h ) | 60 ( straight line ) ; 20 ( turning ) | |
| Max. angle for lateral stability at full load, static state ( ° ) | >23 | |
