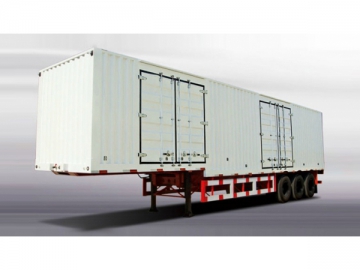

Box Semi-trailer

Request a Quote

About Us: http://huanghai-auto.com

The box semi-trailer is primarily applied for transporting the home appliances, textile goods, construction materials like coal and sandstone, as well as other kinds of cargo. The box of the vehicle is fabricated from high-strength cold rolled corrugated steel sheet. With no skeleton structure, it has large space for cargo. The interior is rationally distributed with X tensile brace. The box is featured by large capacity, strong bearing capacity and light self weight.

The box top of the box semi-trailer has the sealing type, sliding open type, open type, open with tarpaulin and rod type, etc. The operation for opening the top of the box is easy. The multiple types of the box can meet the diversified and personalized needs of the customers.

The box semi-trailer uses the enclosed side guard rail design to effectively cut down the vehicle lateral risk in the case of traveling with high speed and reduce the energy consumption. The rear protection for the vehicle is designed with reasonable cart attachment for facilitating the operation.

Technical Specification

Main Technical Parameters	Model	DD9400XXY
	Overall Dimension (L×W×H) (mm)	13000×2550×3971
	Box Inside Dimension (L×W×H) (mm)	12690×2450×2560
	Max. Total Mass (kg)	40000
	Curb Mass (kg)	8500
	Rated Loading Capacity (kg)	31500
	Number of Axles	Three
	Wheelbase (mm)	7660 1305 1305
	Rear Overhang (mm)	1700
	Departure Angle (°)	18
Main Assembly Mechanism and Parameters	Rear Axle Form	Built-in Brake Drum Axle
	Service Brake	Air Pressure Dual Circuit Drum Brake
	Leaves Number of Leaf Spring (Front / Middle / Rear)	8/8/8
	Tyre	11.00R20, 12.00R20
