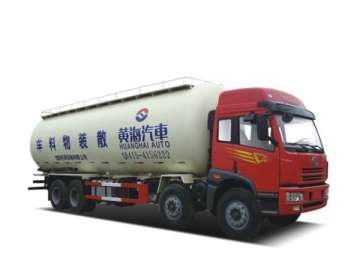

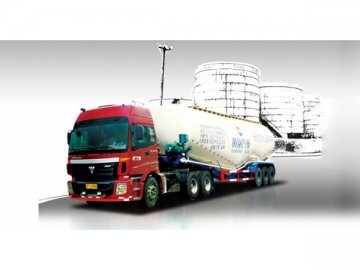

Tank Semi-trailer
The tank semi-trailer utilizes the self-contained engine power to drive the onboard air compressor via the power takeoff. Then, the compressed air is sent to the gas chamber at the lower part of the sealing tank via the pipeline to suspend the cement on the fluidized bed and make the cement become flow state. When the pressure in the tank reaches the rated value, open the discharge butterfly valve. The fluidized cement flows into the pipeline to complete the transportation.
The tank semi-trailer is manufactured from the domestic sophisticated technology. It is novel in design, and has the merits of high durability. The tank with air bag type fluidized bed has large bearing capacity, fast discharging speed and small residual quantity. The integral tank has high overall strength, good rigidity, excellent pressure bearing capacity, good character of service, etc.
Technical Specification| Main Technical Parameters | Model | |||
| Overall Dimension (L×W×H) (mm) | 11990×2500×3950 | 13000×2500×3980 | 12300×2500×3980 | |
| Max. Total Mass (kg) | 31000 | 40000 | 39860 | |
| Curb Mass (kg) | 16900 | 13000 | 12860 | |
| Rated Loading Capacity (kg) | 13905 | 27000 | 27000 | |
| Effective Volume of Tank (m³) | 36.5 | 50 | 40 |
